JW-LCX4 VFFS Machine, Equipped with Z-shape Bucket Elevator, with 12 heads weigher
- Vibratory feeder
- Z-shaped elevating conveyor
- 12 heads weigher
- Vertical form fill and seal machine
- Finished product conveyor
The JW-LCX4 VFFS machine is equipped with a Z-shaped bucket elevator and a 12 heads weigher. It is composed of the vibratory feeder, Z-shaped elevating conveyor, 12 heads weigher and VFFS machine in order to automatically complete the entire feeding, weighing, bag forming, bag filling, bag sealing, label printing and discharging process.
The Z-shaped elevating conveyor is able to transfer products vertically at fast speeds, and features a compact structure of only 3,000mm high, making it suitable for small factories with limited space.
Applicable bag materials: Composite film with thickness between 0.03-0.15mm, single layer PE film, paper film and more.
Applicable bag types② 4 side seal pouches
③ Flat bags
④ Back sealed bag
⑥ Gusset bags
⑦ Quad-seal gusseted bags
| Packaging speed (Pack/Min) | 65P/M |
| Film width | 180-520mm |
| Single weighing range | 10-1500g |
| Film thickness | 0.04mm～0.15mm |
| Form fill and seal machine power | 3.4KW |
| Form fill and seal machine voltage | 220V |
| Multihead weigher power | 1500W |
| Multihead weigher voltage | 220V |
Note: The provided parameters are for reference only. We are able to manufacture custom VFFS machines equipped with Z-shaped bucket elevators according to your specific product types, weighing range, factory area and output.

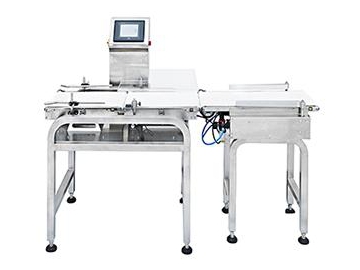

- Check weigher

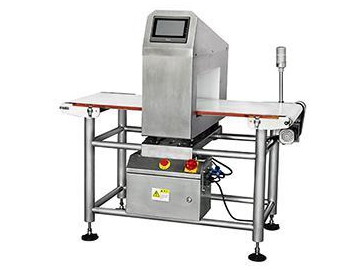

- Metal Detectors

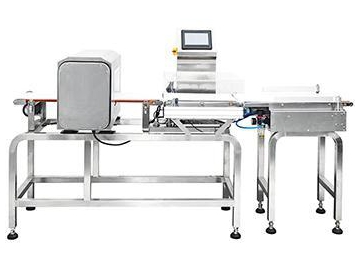

- Combined metal detector and check weigher

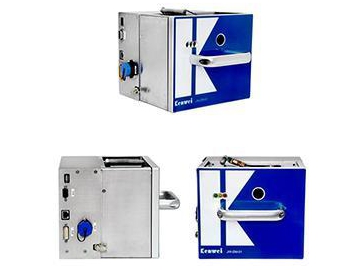

- Thermal Transfer Overprinter

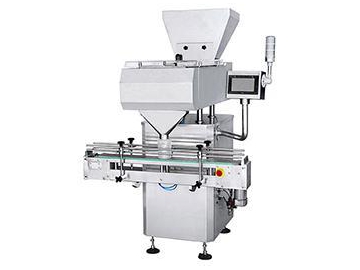

- Count verification machine

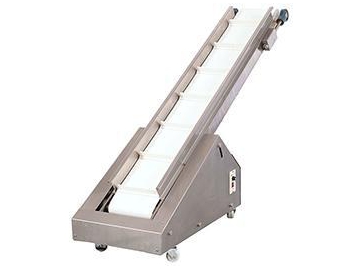

- Conveyor equipment

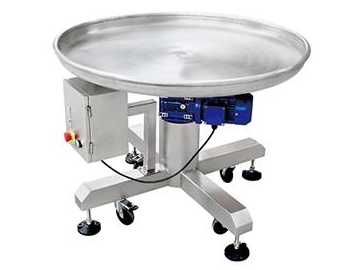

- Accessories
