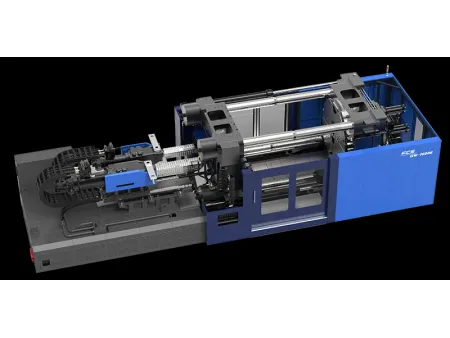

GW-R Series
Two-Platen Multi-Component Injection Molding Machine
Request a Quote
Description
1000-2900ton injection molding machine for multi-colored large-sized plastic parts
Our plastic injection equipment is designed to manufacture large, multi-colored components with precision. It employs advanced linear guides that reduce friction during the mold opening and closing, enhancing operational speed and efficiency. This two-platen injection molding equipment can easily handle complex tasks, ensuring accurate and consistent production with clamping forces ranging from 1000 to 2900 tons.
Injection Unit
- Injection stroke: 220mm-450mm
- Injection capacity: 318g-2604g
- Injection pressure: 1737kgf/cm²-2882kgf/cm²
- Injection rate: 177g/s-675g/s
Clamping Unit
- Clamping force: 1000tonf-2900tonf
- Ejector stroke: 200mm-300mm
Electrics
- Pump motor power: 30kW-52*2kW
- Electric heating power: 18.2kW-50.7kW
- Drive system: hydraulic/hybrid
Applications
This two-platen multi-component injection molding machine is suitable for industries requiring large, complex parts such as automotive components, household appliances, and furniture. It stands out in applications like manufacturing integrated plastic light covers, car tail light covers, windows, and large automotive panels. Its capability to handle intricate multi-color and multi-material production makes it a valuable asset for manufacturers looking to innovate and enhance their product offerings.
Samples of Plastic Injection Molded Parts

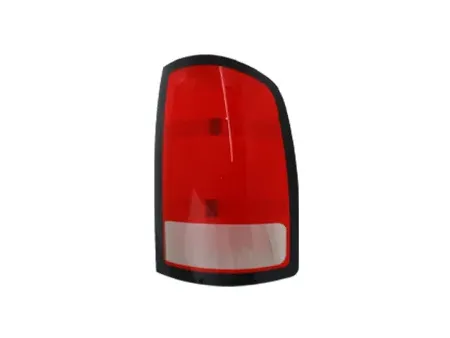

- Two-Color Tail Light

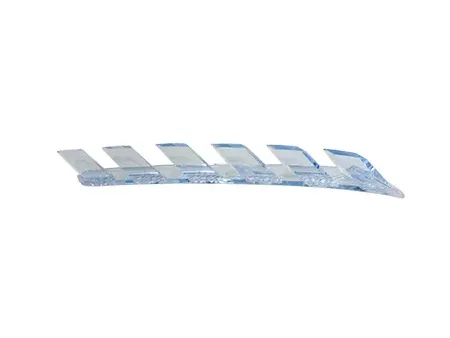

- Daytime Running Light Guide Bar

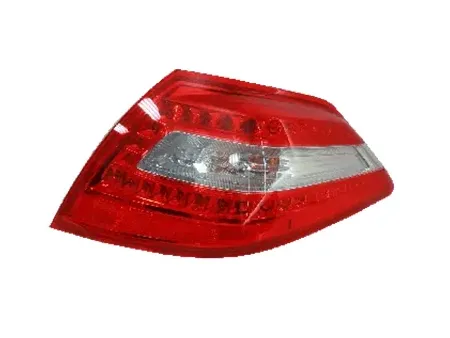

- Tri-Color Tail Light
Key Components
Large pillar clamping
This system ensures robust and reliable clamping, with smart pillar positioning to maintain strong lock mold force, which is crucial for producing precise and defect-free parts.
Locking unit
Designed using finite element analysis, the locking unit ensures even stress distribution across the molding machine and molds, prolonging their service life and enhancing the quality of the products.
Control system upgrade
Integrating a modern control system including Statistical Process Control (SPC) and remote monitoring capabilities enhances production management efficiency while ensuring mold longevity through protective features.
Energy-saving servo system
The servo-driven system reduces energy consumption by 30%-70%, demonstrating a commitment to eco-efficient practices without sacrificing performance.
Efficient injection unit
Equipped with dual independent material tubes for synchronized injection actions, this setup reduces cycle times and increases throughput while specialized treatments on the screws and tubes minimize wear and corrosion.
Optimized & Streamlined Piping Design
The straight main piping reduces oil pressure loss, resulting in a more rational and aesthetically pleasing layout that simplifies installation and maintenance.
Features
- The injection molding machine features an X-type injection layout that optimizes space and provides flexibility for multiple product configurations
- Equipped with high-precision closed-loop control technology, each injection unit ensures consistent quality and precise repeatability
- Four adaptable injection units enable the molding machine to handle multi-color and multi-material production efficiently without the need for changing or moving units
- A large diameter turntable supports heavy molds up to 25 tons, incorporating a unique bearing design for enhanced stability and load capacity
- The turntable is controlled by servo motors, ensuring high-speed operation with precise dual-position locking for complex multi-component tasks
- Proportional valve technology is used for precise mold movements, enhancing mold opening and closing speed and smoothness
- The design includes a high-strength slide foot structure that improves the stability and load-bearing capacity of the moving platen
- A two-platen clamping unit with a pull-out pillar feature facilitates easy mold changes, reducing the space required and increasing operational efficiency
- Modular specifications make the injection molding equipment easy to maintain, with components that are accessible and simple to service, reducing downtime and preserving workflow efficiency
Specifications
| Model | UNIT | |||||||||||||||||
| Injection Unit | Type | - | 1301 | 3261 | 1301 | 3261 | 5001 | 1301 | 3261 | 5001 | ||||||||
| Screw diameter | mm | 45 | 50 | 60 | 70 | 45 | 50 | 60 | 70 | 80 | 90 | 45 | 50 | 60 | 70 | 80 | 90 | |
| Injection stroke | mm | 286 | 286 | 340 | 400 | 286 | 286 | 340 | 400 | 450 | 450 | 286 | 286 | 340 | 400 | 450 | 450 | |
| Theoretical shot volume | cm³ | 455 | 561 | 961 | 1539 | 455 | 561 | 961 | 1539 | 2261 | 2861 | 455 | 561 | 961 | 1539 | 2261 | 2861 | |
| Shot weight of injection(PS) | g | 414 | 511 | 874 | 1400 | 414 | 511 | 874 | 1400 | 2057 | 2604 | 414 | 511 | 874 | 1400 | 2057 | 2604 | |
| Injection pressure | kgf/cm² | 2765 | 2240 | 2882 | 2117 | 2765 | 2240 | 2882 | 2117 | 2198 | 1737 | 2765 | 2240 | 2882 | 2117 | 2198 | 1737 | |
| Injection rate | g/s | 177 | 218 | 334 | 455 | 177 | 218 | 334 | 455 | 489 | 619 | 188 | 232 | 334 | 455 | 533 | 675 | |
| Distance between barrel centers | mm | 710 | 710 | 710 | ||||||||||||||
| Mold Clamping Unit | Mold clamping force | tonf | 1000 | 1600 | 2900 | |||||||||||||
| Mold clamping stroke | mm | 2200~1400 | 2400~1500 | 3500~2200 | ||||||||||||||
| Mold thickness | mm | 550~1350 | 700~1600 | 900~2200 | ||||||||||||||
| Tie bar spacing (H×V) | mm | 1260×1130 | 1530×1380 | 2300×1900 | ||||||||||||||
| Mold platen (H×V) | mm | 1860×1630 | 2200×2040 | 3200×2800 | ||||||||||||||
| Effective ejector stroke ① | mm | 200 | 200 | 300 | ||||||||||||||
| Ejector force | tonf | 46.2 | 46.2 | 46.2 | ||||||||||||||
| Rotary table diameter ② | mm | 1600 | 2030 | 2800 | ||||||||||||||
| Max. rotary diameter of mold | mm | 1770 | 2150 | 3100 | ||||||||||||||
| Electrical Equipment | Max. pump driving motor | kW | 30 | 45 30 | 30 | 45 30 | 45 30 | 52 | 52*2 | 52*2 | ||||||||
| Temperature controller | (range)set | (0-400℃)×6 | (0-400℃)×6 | (0-400℃)×6 | (0-400℃)×6 | (0-400℃)×6 | (0-400℃)×6 | (0-400℃)×6 | (0-400℃)×6 | |||||||||
| Heater capacity | kW | 18.2 | 22 | 39 | 18.2 | 20 | 39 | 50.7 | 18.2 | 22 | 39 | 50.7 | ||||||
| General | Machine dimensions (L×W×H) | mm | 11000×3600×3000 | 2270×3700×3160 | 15400×5060×4000 | |||||||||||||
| Oil tank capacity | liter | 2200 | 2200 | 2500 | ||||||||||||||
| Machine weight | ton | 65 | 90 | 175 | ||||||||||||||
| Max. system pressure | kgf/cm² | 140 | 140 | Mold clamping 175 / injection140 | ||||||||||||||
What industries and products are the GW-R series two-platen multi-component injection molding machines primarily suitable for?
What industries and products are the GW-R series two-platen multi-component injection molding machines primarily suitable for?
The FCS GW-R series features a two-platen clamping structure and is equipped with multiple injection units. It is specifically designed for complex molding processes such as two-color, multi-color, and soft-hard material combinations, making it widely applicable for high-precision, high-efficiency multi-material injection production. It is highly suitable for manufacturing automotive parts, sports equipment, consumer goods, and various water supply materials.
Does the GW-R series two-platen multi-component injection molding machine support expansion to more components (e.g., more than five colors)?
Does the GW-R series two-platen multi-component injection molding machine support expansion to more components (e.g., more than five colors)?
The two-platen multi-component injection molding machine can be modularly upgraded for up to five-color injection (requiring additional injection units and multi-station molds). However, it is necessary to reserve interfaces and space during the procurement stage.
How does the GW-R series two-platen multi-component injection molding machine achieve noise reduction?
How does the GW-R series two-platen multi-component injection molding machine achieve noise reduction?
The hydraulic system incorporates a pressure-reducing design, keeping the operating noise level below 70 decibels.
