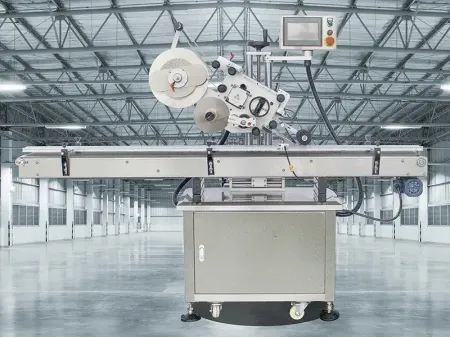

Automatic Top Labeling Machine
Request a Quote
Top surface labeling machine for wrinkle-free labeling on cartons, pouches, and flat-top containers
This automatic top labeling machine, designed with labeling accuracy of ±1mm, equipped with Panasonic/Siemens servo motors and advanced photoelectric sensing systems, ensure a flat, wrinkles-free, bubbles-free labeling. The automatic labeler enables to apply labels to containers of various sizes, shapes and on different positions, offering versatility to adapt to various labeling requirements. The machine frame is made by 304/316 stainless steel, compliable with GMP and CE safety standard, is corrosion resistant and easy to clean. The intelligent touchscreen facilitates easy operations and supports recipe storage and multilingual interface.
Application
Carton / Shipping BoxPaper Box / Small CartonSachet / PouchStand-up Pouch / DoypackRound Jar
Parameters
| Model | |
| Capacity | 120-250 BPM(Depending on bottle sizes and label size ) |
| Labeling Accuracy | ±1mm |
| Bottle Diameter | 25-120mm Or Customized |
| Bottle Height | 25mm ~300mm Or Customized |
| Label Size | 10mm ~150mm 15~300mm Or Customized |
| Label Roll | I.D.:76mm O.D.: 320(Max.) |
| Weight | 200KG |
| Power | 550W 220VAC 1P |
