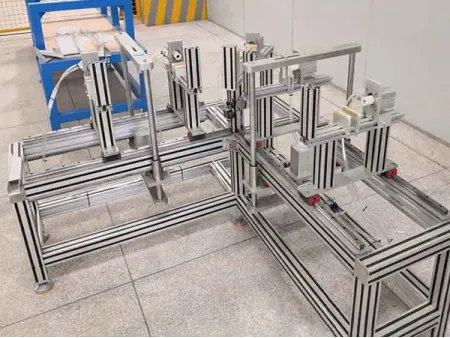

Busbar Elbow Assembly Fixture
Request a Quote
For positioning and pneumatic clamping of vertical and horizontal busbar elbows
Busbar elbow assembly fixtures are used to position and hold vertical or horizontal busbar elbows during assembly. They are used to hold the busbar elbow in the required position before riveting, so the connected sections stay in place during assembly.
Since busbar elbows are not all the same size, the fixture is customized to suit the dimensions required for production. During assembly, pneumatic clamping keeps the busbar sections pressed together before riveting.
Features
- Suitable for vertical and horizontal busbar elbows
- Positioning and holding support during assembly
- Customized according to different busbar sizes
- Pneumatic clamping during the assembly stage
- Helps keep the busbar sections closely fitted before riveting
Busbar Elbow
Specifications
| Model | |
| Max. Size of X/Y Axis | 1500mm |
| Number of Clamping Fixtures | 3 pieces |
| Elbow Type | Horizontal elbow, vertical elbow |
| Power Supply | 380–415VAC, 50–60Hz, 1.5kW |
| Air Supply | 0.6MPa |
| Dimensions (L×W×H) | 1800×1800×900mm |
