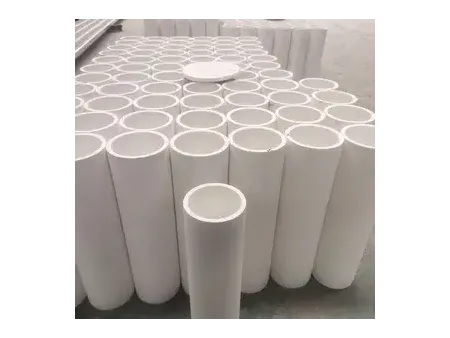

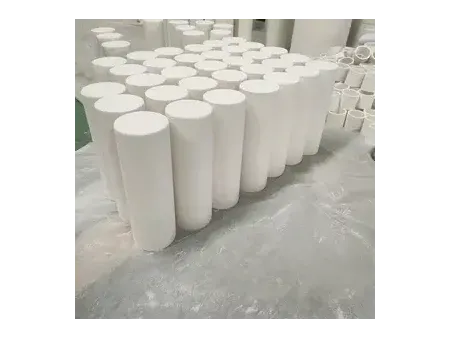

Ceramic Pipe Liners (Ceramic Cylinder Liners)
- High wear resistance: Ceramic materials feature high hardness, significantly reducing maintenance and replacement frequency in harsh operating conditions such as drilling and mining.
- High temperature resistance: Capable of stable operation at elevated temperatures, withstanding hot gas erosion and thermal radiation.
- Excellent corrosion resistance: Ceramics exhibit strong chemical stability and high resistance to acids, alkalis, and salts, making them widely applicable in industries including chemical and petroleum.
- Low coefficient of thermal expansion: Minimal dimensional change under temperature fluctuations ensures precise clearance between the liner and piston, reducing fuel or gas leakage and improving operational efficiency.
(The following specifications are standard options. Custom manufacturing is available based on customer drawings.)
| Steel pipe outer diameter (mm) | Steel pipe thickness (mm) | Ceramic inner diameter (mm) | Ceramic thickness (mm) | Flange specification |
|---|---|---|---|---|
| | 2 | 34 | 4 | DN40 |
| | 2 | 40 | 4.5 | DN40/DN50 |
| | 2 | 48.5 | 4 | DN50 |
| | 3 | 50 | 5 | DN50 |
| | 3 | 50 | 7 | DN65 |
| | 2 | 55 | 5 | DN65 |
| | 3 | 62 | 5 | DN65 |
| | 3 | 65 | 6 | DN65/DN80 |
| | 3 | 68 | 5 | DN80 |
| | 3 | 70 | 5 | DN80 |
| | 3 | 76 | 7 | DN80/DN100 |
| | 3 | 80 | 6 | DN80/DN100 |
| | 4 | 80 | 6 | DN80/DN100 |
| | 3 | 90 | 6 | DN80/DN100 |
| | 4 | 100 | 6 | DN100/DN125 |
| | 3 | 125 | 8 | DN125/DN150 |
| | 4 | 125 | 8 | DN125/DN150 |
| | 3 | 150 | 9 | DN150 |
| | 4 | 180 | 11 | DN200 |
| | 5 | 200 | 13 | DN200/DN250 |
| | 4 | 210 | 10 | DN200/DN250 |
| | 5 | 250 | 13 | DN250 |
| | 6 | 300 | 13 | DN300 |
| | 6 | 350 | 15 | DN350 |
| | 6 | 400 | 15 | DN400 |
| | 8 | 450 | 20 | DN450 |
| | 8 | 500 | 20 | DN500 |
Steel pipe and flange materials: SUS304/SUS316/Q235
Flange types: Fixed/lap joint/non-standard
92% ceramic (Al₂O₃ content ≥92%, white)
95% ceramic (Al₂O₃ content ≥95%, off-white)
99% ceramic (Al₂O₃ content ≥99%, light yellow)
Outer surface treatment of the feed pipe (insert pipe inside the hopper): ETFE coating spray/alumina ceramic coating
Describe your application details, and we will support fully custom designs and non-standard requirements.
- Manufacturing Capacity You Can Rely On7 automated production lines | 270 manufacturing and processing equipment
- Strict Quality Control & Certified SystemsISO 9001 · Environmental Management | Occupational Health & Safety certified
- Trusted by Customers WorldwideTrusted by clients in the USA, Europe, Russia, India, Brazil, and 30 countries and regions worldwide
Selection should be based on a comprehensive evaluation of the operating environment, required mechanical properties, thermal stability, electrical insulation, and chemical resistance. If requirements are unclear, technical support can provide customized recommendations based on specific application conditions.
Industrial ceramic products are available in a wide range of specifications and sizes, including round, square, reducer, and special-shaped components. Custom manufacturing is available when standard specifications do not meet application requirements.
Industrial ceramics offer high hardness, excellent wear resistance, high temperature resistance, good electrical insulation, and strong corrosion resistance. They are widely used in machinery, electronics, power generation, and chemical industries. Compared with conventional materials, ceramics provide longer service life and are well suited for high-load, high-temperature, and highly corrosive environments.
