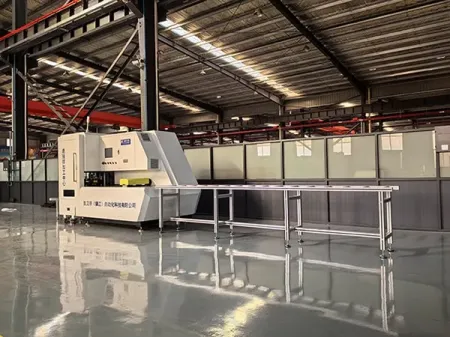

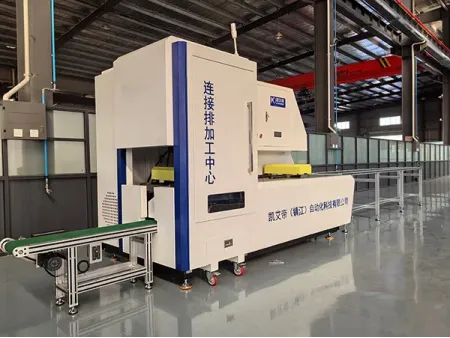

Joint Connection Bar Processing Center
Customizable CNC System for Precision Punching, Counter-Boring, Cutting, and Multi-Angle Folding
Traditional busbar punching and bending often lead to misaligned bolt holes. KIANDE joint connection bar processing center ensures every component fits perfectly the first time. We use integrated CNC technology to master the most complex connection shapes.
Our process starts with high-speed automated feeding for raw copper bars. This is followed by multi-unit CNC punching and precise shearing according to your specific joint designs. The final stage integrates heavy-duty hydraulic folding and shaping with real-time accuracy compensation.
KIANDE systems control joint tolerances strictly (as tight as ±0.1mm). This precision ensures perfect hole-to-hole alignment for secure bolt fastening and low contact resistance. Our CNC busbar punching machine enables stable, 24/7 high-output production for various connection shapes. You can get maximum fabrication capacity with minimal labor dependency.
Contact our engineering team today for a free feasibility analysis and an optimal quote tailored to your joint bar dimensions!
- Busway Systems: Punching, cutting, and multi-angle folding of joint bars for sandwich and air-insulated bus ducts.
- Switchgear & Controlgear: Fabricating complex copper connectors for LV/MV distribution panels and cabinets.
- Power Transformers: Manufacturing heavy-duty copper links and flexible connection bars for transformer bushings.
- Data Center Power: Producing high-precision joint units for modular power tracks in server rooms.
Hole distance accuracy ±0.1mm, perfect hole alignment, low contact resistance
Punching, counter bore, cutting, deburring – all on one machine
Touch screen parameter setting, one-time material clamping, automatic switching
Tailored punching, counter boring, cutting based on different joint bar types
| Model | |
| Nominal Force | Punching 300kN |
| Stretching 300kN | |
| Shearing 300kN | |
| Stroke of X Axis | 1200mm |
| Max. Speed of X Axis | 500mm/s |
| Punching Stroke | 50mm |
| Distance Accuracy of Two Holes | ±0.1mm |
| Conductor Size (Copper/Aluminum) | Length 6000mm |
| Width 100–140mm | |
| Thickness 2–4.5mm | |
| Max. Hydraulic Pressure | 31.5MPa |
| Power Supply | 380–415VAC, 50–60Hz, 10kW |
How do you prevent surface scratches on plated copper bars?
We use specialized rollers and polished die coatings to protect tin or silver plating. This ensures the lowest possible contact resistance and prevents oxidation during the bar's service life.
