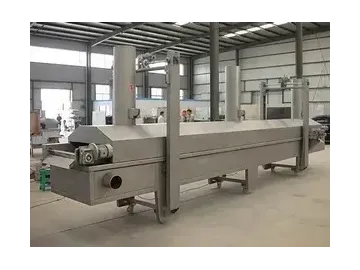

Potato Chip Fryer (Continuous Belt Fryer)
The continuous belt fryer is engineered for specific potato processing needs. The equipment is suitable for high-capacity requirements, delivering operational efficiency and rapid oil turnover rates.
- Capacity: 100-500 kg/h
- Heating source: Electric heating is available for low-capacity models; natural gas, steam, diesel, or gasoline are recommended for capacities exceeding 200 kg/h.
- Standard Configuration
- Optional Configuration
-
The fryer utilizes a single-layer mesh belt equipped with paddle wheels at the intake section to disperse materials, ensuring uniform frying.
-
Variable frequency drive motors provide controllable frying speeds and adjustable retention times.
-
Pre-installed exhaust duct interfaces allow integration with factory extraction systems for oil mist removal.
-
An automated lifting system enables the hood and conveyor frame to be raised simultaneously or independently from the fryer body to facilitate cleaning and maintenance.
-
The control system (available in pushbutton or PLC touchscreen formats) manages operational and safety parameters, including frying time, temperature, oil level control, oil circulation, high-temperature alarms, and dry-burn protection.
