Automatic Roll-Fed Die Cutter

Request a Quote

Website: https://coatingextruder.com/die-cutting-machine-13-4-1.html

Automatic roll-fed die cutting is the cornerstone of high-efficiency packaging converting. By transforming raw paper rolls into precisely cut and creased blanks in a single continuous pass, this process maximizes substrate utilization and ensures consistent quality for large-scale production.
Featuring operational stability, exceptional cutting accuracy, and safety features, our paper roll die cutting machine is a high-precision paper converting solution engineered to meet the rigorous demands of the printing and packaging industries, which allows to precisely cut paper rolls into blanks for paper cups, food containers, medicine boxes, and various paper products.

Specifications

Series	ML970
Model	970x550	970x640	1080x640	1200x640
Max. Cutting Area	940×510	970×600	1050×600	1160×600
Cutting Accuracy	±0.20mm
Paper Weight Range	120-600g	120-600g	120-600g	120-600g
Production Capacity	120-140 strokes/min			120-140 strokes/min
Air Pressure	0.5MPa
Air Consumption	0.25m³/min
Max. Cutting Pressure	300T	300T	300T	300T
Weight	10T	12T	13T	14T
Max. Unwind Diameter	1600mm
Total Power	28kW
Power Consumption	15kW
Machine Dimensions	8000×2300×1900		10000×2300×1900

Series	H970
Model	970x550	970x640	1080x640	1200x640
Max. Cutting Area	940×510	970×600	1050×600	1160×600
Cutting Accuracy	±0.15mm
Paper Weight Range	120-400g	120-400g	120-600g	120-600g
Production Capacity	110-200 strokes/min			110-180 strokes/min
Air Pressure	0.5MPa
Air Consumption	0.25m³/min
Max. Cutting Pressure	180T	180T	300T	300T
Weight	6.0T	6T	8T	8.5T
Max. Unwind Diameter	1600mm
Total Power	28kW
Power Consumption	12kW
Machine Dimensions	4500×2200×1800		4500×2400×1800	4500×2500×1800

Machine Details Display

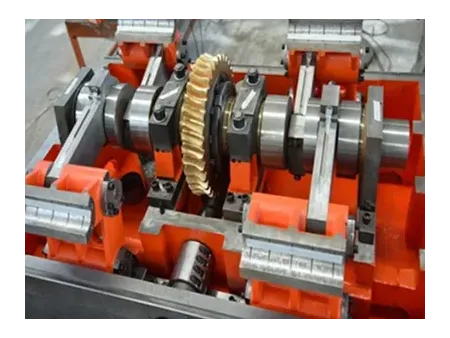

Drive & Structure

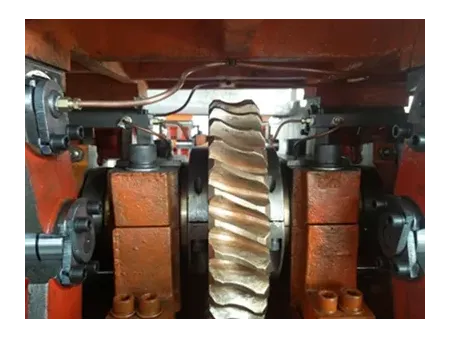

Forced Lubrication System
Power & Safety
Motorized Pressure Adjustment
Servo Registration
Integrated Electrical Control
Motorized Web Correction
Pneumatic Die Locking
Paper Jam Alarm
Pneumatic Roll Stand
Dual-Roller Feeding
Multi-Stage Decurler
Photoelectric Tracking
Automatic Collection
