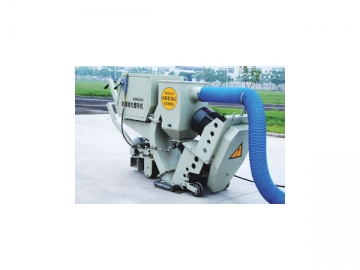

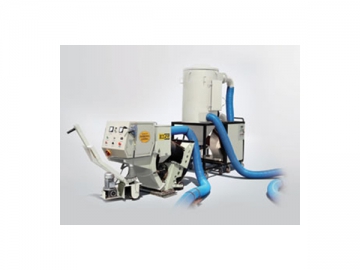

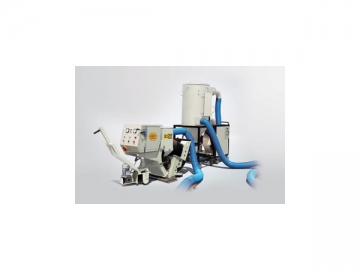

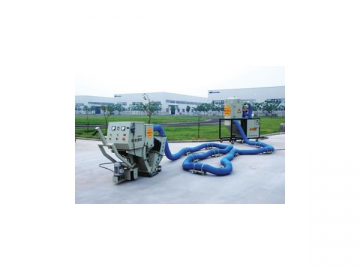

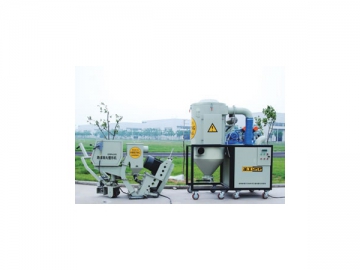

GYDPW1045 shot blaster is a device which throws the steel shots out under centrifugal force at a high speed and a certain angle to powerfully impact the road or bridge surface in need of pretreatment for clearing the laitance, oil stain, old coating and forming a new rough surface for construction. It can recycle the steel shots automatically and send the dust and sundries to the special dust collector, thus keeping a dust-free and pollution-free working environment. In addition to being efficient and environmentally friendly, our shot blaster also causes no injuries to the road surface. As a result, it is widely used in the surface clearing and pretreatment of roads and bridges, surface clearing of asphalt, stones and steel materials, and is also suitable for the internal environment such as the parking lots and roads in factories and hospitals and airport runways. After shot blasting treatment, the surfaces could recover the anti-slide performance, and adhere to the coating, oil reservoir, sealant and mortar closely to prolong the life of working layer.

Applications
1. For surface treatment to the concrete bridge deck, our shot blaster could remove the laitance and residues away from the concrete surface.
2. For maintenance of the pavement in tunnels, such as clearing the filth and oil coat.
3. For the pre-treatment of road surface before asphalt concrete surface top coating.
4. Scuff the road surface at the turning of road for improved anti-slide property.
5. It is able to get rid of flushing asphalt of pavement.
6. Our shot blaster is useful for removing lane marker lines.
7. For appliance to anti-corrosive coating of steel bridge.
8. Our shot blaster is ideal for preventive maintenance of airport runway, such as rubber cleaning and marker lines removing.
9. For rusting removal of steel board.
10. Surfacing of the open space, such as the squares of government institutions, schools, stations or parking lots.

Technical Specifications of Shot Blaster
Model GYDPW1045
Quantity of blast wheel 1 wheel
Working width 450mm
Walking speed 0.5-17m/min
Working efficiency about 200m2/h
Shot size S330, S370, S460 and so on
Rated discharge pressure of air compressor 0.8 MPa
Working conditions ambient temperature should be 3 centidegrees higher than the dew point; and relative humidity is less than 85%.
Installed capacity 25.25kW (air compressor motor included)
AC power supply 380V/50HZ
Overall dimensions
Main unit 2420X550X1230 (mm)

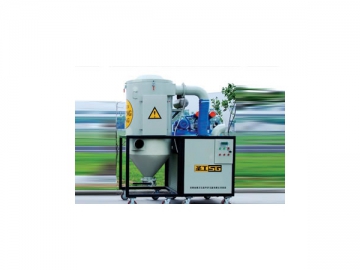

Duster 1800X900X2040 (mm)
Shots collector 1100X660X1100 (mm)
Basic Configurations of Shot Blaster
Main unit 1 set
Duster 1 set
Shots collector 1 set
Connecting hose 20m
Hose carrier 10 sets
Dust carrier cart 1 set
Supplied tools 1 set

We at Gaoyuan are an experienced shot blaster manufacturer in China. Through years of experience and tireless efforts, we have received the ISO9001:2000 certificate and have the capacity of providing an extensive line of products, such as asphalt distributors, synchronous chip sealer, asphalt plants, etc. To ensure our customers have the best experience in using our products, we offer superior services, including product installation, maintenance, repair and operator training services.
If you are interested in our road maintenance equipment, please feel free to contact us.
