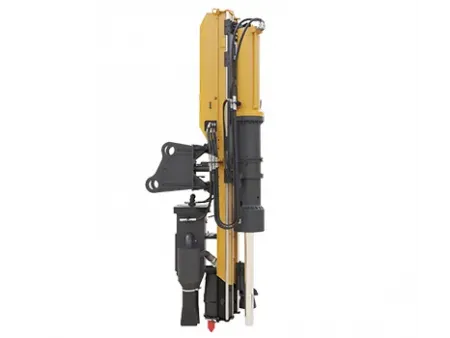

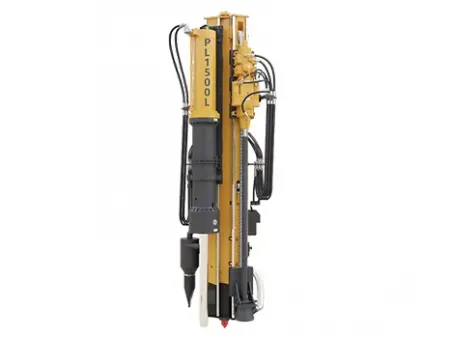

Mounted on 36 to 48-ton class excavators, the PL-1500L hydraulic rock drill splitter offers a high-efficiency, eco-friendly solution for hard rock excavation and mining. By fully leveraging the excavator’s power and mobility, the rock drill splitter excels in the most demanding outdoor environments.

The proprietary L-shaped triangular swing linkage ensures exceptional structural stability and durability, facilitating precision operation across all angles. Designed for versatility, the splitter is easy to disassemble for transport and features a rear-mounted electrical and hydraulic configuration for streamlined inspection and maintenance. Operations are managed via a high-reliability, multi-channel wireless remote control system.

Equipped with a 30kW hydraulic rock drill, the excavator drill splitter first executes precision drilling. This is followed by the P280 two-stage pressure-boosted splitter, which performs in-hole splitting to deliver highly efficient, non-explosive rock breaking.
