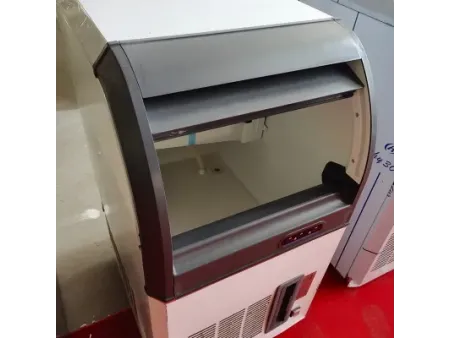

Integrated Ice Maker (Self-Contained Ice Machine)
The integrated ice maker is an ideal solution for businesses that require reliable ice production. Whether you’re running a milk tea shop, café, restaurant, or bar, this commercial self-contained ice machine can meet your ice-making needs efficiently. We offer three customizable models of ice makers with daily ice production capacities of 40 kg, 60 kg, and 90 kg.
The compact ice machine is easy to install and simple in operation for various environments, from small kiosks to high-traffic venues. The rapid ice production enhances the customer experience and contributes to your business's profitability.
The ice maker is suitable for restaurant bars, milk tea shops, seafood markets, and buffets, efficiently producing large quantities of ice for beverage preparation, ingredient preservation, and chilling at dining stations, ensuring smooth operations across various commercial environments.

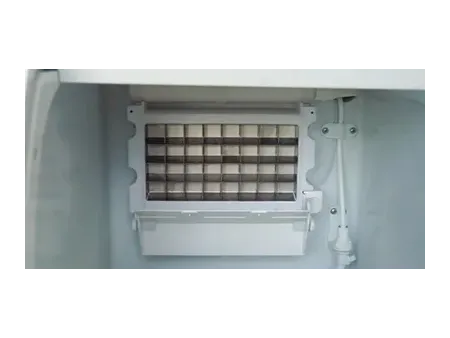

- Ice making tray
- Temperature setting button
- Power switch
| Model | |||
| Ice Type | Cube Ice | Cube Ice | Cube Ice |
| Dimensions (W×D×H) | 505×656×905mm | 610×656×905mm | 715×656×905mm |
| Packing Size (W×D×H) | 585×720×1000mm | 690×720×1000mm | 795×720×1000mm |
| Ice Storage Capacity | 48kg | 66kg | 90kg |
| Climate | 4 | 4 | 4 |
| Power Input | 500W | 600W | 760W |
| Compressor Model | NUY90Ra1 | NUY90Ra1 | NPY12RA |
| Inner Material | HIPS (2mm) | HIPS (2mm) | HIPS (2mm) |
| Outer Material | SUS 304 (0.8mm) | SUS 304 (0.8mm) | SUS 304 (0.8mm) |
| Refrigerant | R290 (105g) | R290 (125g) | R290 (149g) |
| Net Weight | 48kg | 52kg | 57kg |
| Gross Weight | 54kg | 59kg | 65kg |
