Large Format 3kW IPG Fiber Laser Cutting Machine
Request a Quote
Incredibly fast and flexible, the ACCURL Genius 3kw fiber laser cutter is ideal for ultra-high speed cutting of thin sheet materials. It also features the ability to cut a wide range of ferrous and non-ferrous metals, while maintaining low cost operation.
Features
- User friendly FAGOR 8060 CNC control unit.
- Unique features:
-Maximum simultaneous positioning speed: 160m/min.
-Acceleration speed: 25 m/ s2 (2.5G).
-Precision: ± 0.05 mm.
-Energy efficiency: greatly reduced power consumption.
-IPG YLS-3000w Resonator - Advanced PRECITEC cutting head (with air cross blast).
- Fully enclosed to ensure maximum operator protection.
- Effective high to low pressure gas exchange system.
- Automatic time and unit cost calculation function.
- Network connection from external.
- Smoke extraction (included in series models).
- Collection of work pieces and trimmings.
- Dual proportional valve control system for different gas pressures and special system for high pressure cutting.
Key Specifications
- Fiber Laser Cutting Machine with Double Pallet Changer
- High Speed Large Format Full Closed Type
- Laser Power: 3000 watts
- Pallet working table, saving time for material uploading, further improving working efficiency.
- Cutting Area: 1500mm×3000mm, 2000mm×4000mm, 2000mm×6000mm
- Double gear rack closed-loop system and PMAC Controller (America Delta Tau Systems Inc)
Standard Equipment
- FAGOR 8060 CNC Controller
- IPG YLS-3000W Ytterbium Laser Resonator
- Automatic Double Pallet Changer(Shuttle Table)
- Precision Rack & Pinion Drive System (Made in Germany)
- Radan or Lantek CAD/CAM system
- Light source
- Chiller
- 3 lower protective lenses
- 3 Ceramic Nozzle Adapters
- Auto-calibrated nozzle system
- Lens with 5.9” Focus Length
- Smart Slag Collection System/ Chip Conveyor
- Fiber Beam Transmission System (Fiber Cable)
- Operates with both N2 and O2 (cutting) gases
- Home Position Alignment System
- Auxiliary Gas Selector
- Auto Reflection Warning
- Working Lights
- 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)
Specifications
| Model | ECO-FIBER 3015 / 3kW | |
| CNC Control Unit | FAGOR 8060 CNC System | |
| X axis (Rack & Pinion) | 3000 mm | |
| Y axis (Rack & Pinion) | 1500 mm | |
| Z axis (Ball Screw) | 100 mm | |
| Maximum cutting capacity | Mild steel | 20 mm |
| Stainless steel | 10 mm | |
| Aluminum | 8 mm | |
| Work piece dimensions | 1525 x 3050 mm | |
| Rapid traverse (X and Y axis) | 105 m/min | |
| Acceleration | 2.5G (25m/s2) | |
| Vector speed | 148 m/min | |
| Absolute positioning accuracy | ± 0.08 mm | |
| Repeatability (X and Y axis) | ± 0.03 mm | |
| Max. load capacity | 2450 kg | |
| High Performance CNC System | FAGOR 8060 from Spain Brand | |
| Laser power | IPG YLS-3 kW from Germany | |
| High Performance Servo motor/drive | FAGOR from Spain Brand | |
| Laser Cutting Head | PRECITEC from Germany | |
| Motoreducer | STOBER from Germany | |
Detailed Pictures

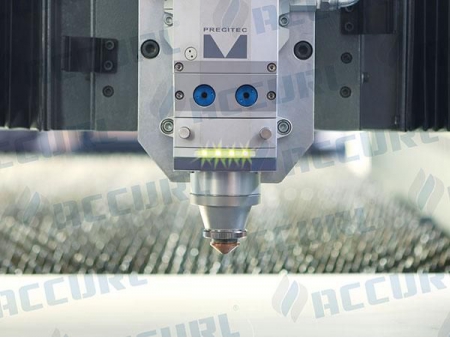

- Germany PRECITEC Laser Cutting Head

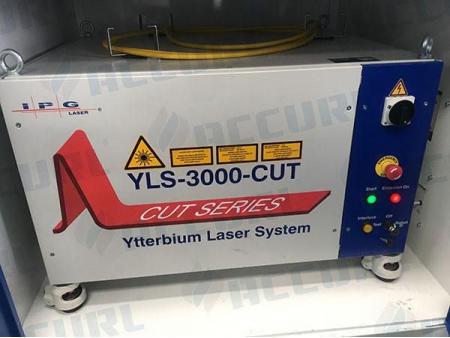

- IPG YLS-3 kW Laser power from Germany

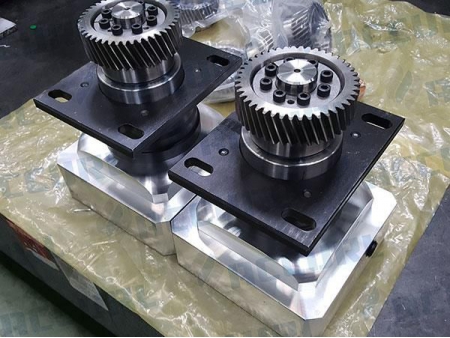

- STOBER Precision Rack and Pinion Drive System (Made in Germany)

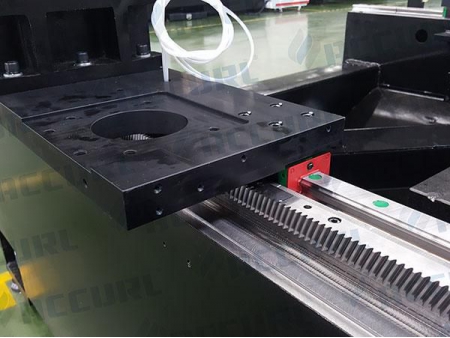

- Linear guide and Rack

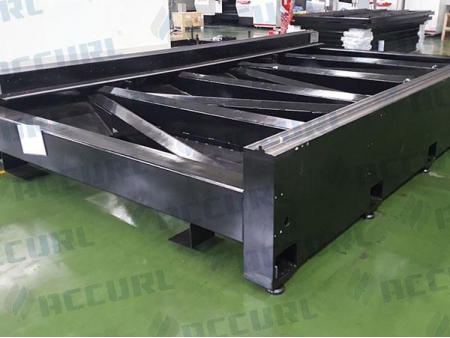

- Framework by heat treatment
