Laser Seam Tracking Beam Welding Station (Gantry & Cantilever)
Request a Quote
Laser seam tracking beam welding station, an automated structural steel welding system utilizes advanced laser sensors for real-time weld seam tracking and precise initial weld point positioning.
This automated steel beam welding station integrates real-time laser seam tracking technology to automatically locate the starting point of the weld and complete the welding process autonomously. The steel beam welding system significantly reduces manual labor while ensuring exceptional welding precision and data collection capabilities.
We offer two primary structural designs, gantry type and cantilever type welding system, to suit different factory layouts and workpiece requirements.

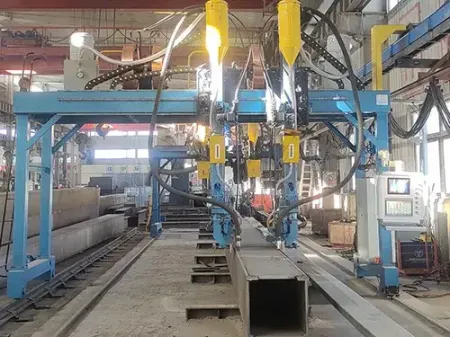

Structural Steel Beam Welding Gantry System
| Model | |
| Rail Span (mm) | 5000 |
| Workpiece Cross-Section (mm) | 300×300 to 1500×1500 |
| Applicable Workpiece Length (mm) | 4000-15000 |
| Welding Speed (m/min) | 0.24-2.4 |
| Rapid Return Speed (mm/min) | 3000 |
| Total Equipment Power (excluding welding machine) (kW) | 12.7 |

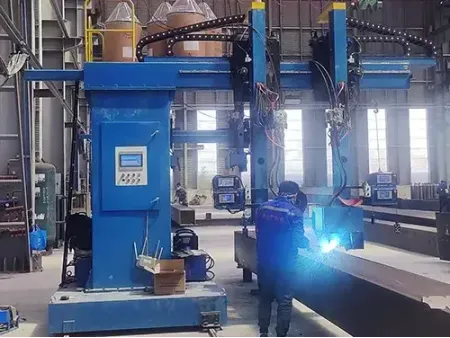

Cantilever Type Structural Steel Beam Welding System
| Model | |
| Rail Span (mm) | 1500 |
| Workpiece Cross-Section (mm) | 300×300 to 1500×1500 |
| Suitable Workpiece Length (mm) | 4000-15000 |
| Welding Speed (m/min) | 0.24-2.4 |
| Rapid Return Speed (mm/min) | 3000 |
| Total Equipment Power (excluding welding machine) (kW) | 5 |
