LED Light Bulb Assembly Production Line
Request a Quote
The LED light bulb assembly production line is specially designed and developed for assembling A19 LED bulb. The system has stable performance and high output of 1500pcs/h, which can help you improve work efficiency and save you money.

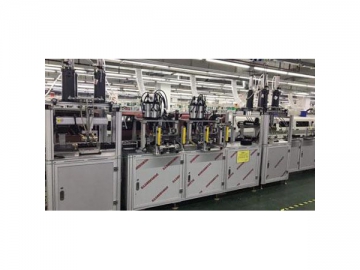

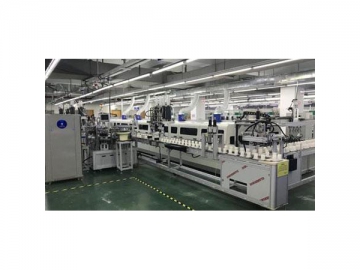

The automatic assembly line of LED bulb adopts segmented structure. The front section and the rear section with elevator and conveyor form a circular conveying system. The middle section adopts rotary table, which can effectively save space and realize efficient semi-automatic production.
Production process
Technical parameters
| Overall dimension | L22500*W2300*H1600mm |
| Model | A19 light bulb |
| Operating system | Windows XP system |
| Display | LED display |
| Input device | Mouse, keyboard |
| Design capacity | 1800pcs/h |
| Actual capacity | 1500pcs/h |
| Rated voltage | AC220V； 50HZ |
| Rated power | 13.4Kw |
| Rated pressure | 0.5-0.7MPa |
| Transmission method | Chain, belt, cylinder |
| Gross weight | 5200Kg |
| Dispensing accuracy | ±0.2g |
| Dispensing cartridge scale | Standard 2600cc |
Note: our company LEADY can customize the automatic assembly line of LED bulb according to your requirements, such as size, function, production speed, etc.
