PCBN Tools (Tool Bits for Whirling), WNGA

Request a Quote

Website: http://winicetech-en.com/pcbn-cutting-tools-wnga-2-2-9.html

Technical Specifications

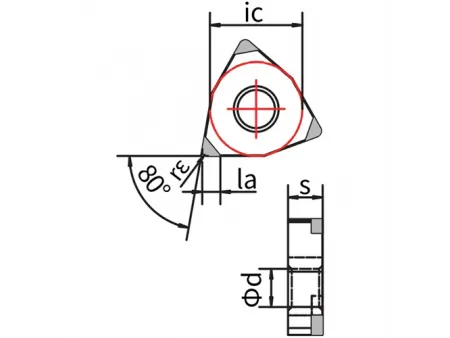

ISO Code	ANSI Code	Tips	Tip Forming	Edge Length	Hole Diameter	Thickness	Nose Radius	Tip Length	H	K	S
				ic	Ød	s	r	la
WNGA080404	WNGA431	3N	Standard	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	3N	Wiper	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	3N	Chip breaker	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	3N	Standard	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	3N	Wiper	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	3N	Chip breaker	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080408	WNGA432	3N	Standard	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
WNGA080408	WNGA432	3N	Wiper	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
WNGA080408	WNGA432	3N	Chip breaker	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
WNGA080404	WNGA431	6N	Standard	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	6N	Wiper	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	6N	Chip	12.7	5.16	4.76	0.4	2.2	●	●	●
WNGA080408	WNGA432		breaker				0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	6N	Standard	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	6N	Wiper	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080404	WNGA431	6N	Chip breaker	12.7	5.16	4.76	0.4	3	●	●	●
WNGA080408	WNGA432						0.8
WNGA080412	WNGA433						1.2
WNGA080408	WNGA432	6N	Standard	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
WNGA080408	WNGA432	6N	Wiper	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
WNGA080408	WNGA432	6N	Chip breaker	12.7	5.16	4.76	0.8	4	●	●	●
WNGA080412	WNGA433						1.2
WNGA080416	WNGA434						1.6
