Solid State Welder
Request a Quote

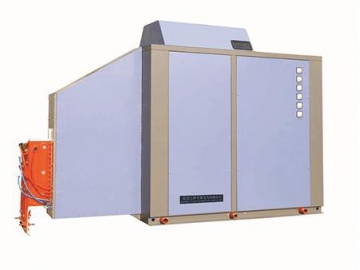

The solid state welder is a high-performance welding system that is computer controlled for the efficient production of pipes. A complete solid state high frequency welder consists of a rectifying cabinet, inverter and output cabinet, connecting optical fiber, closed loop water cooling system, central operator console, and more. We can provide you with different types of solid state welders to fit your exiting tube production line. They can even be customized according to your needs.
| Welding Power (kw) | Pipe OD (mm) | Thickness (mm) | Working Speed (m/min) |
| 100 | 10-50 | 0.3-2.0 | ≤120 |
| 200 | 32-76 | 1.0-3.0 | ≤120 |
| 250 | 32-76 | 1.0-4.0 | ≤120 |
| 300 | 45-114 | 1.5-4.5 | ≤90 |
| 400 | 45-165 | 1.5-4.5 | ≤80 |
| 500 | 76-219 | 2.0-6.5 | ≤80 |
| 600 | 76-273 | 3.0-9.0 | ≤60 |
| 800 | 89-325 | 4.0-12.7 | ≤50 |
| 1000 | 165-610 | 6.0-19.0 | ≤30 |
