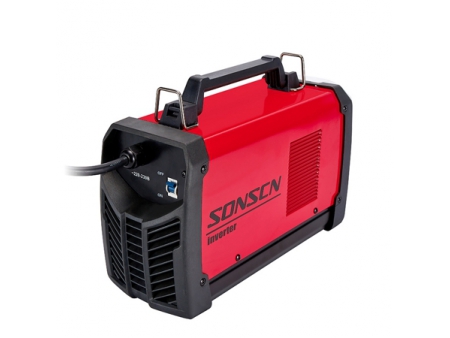

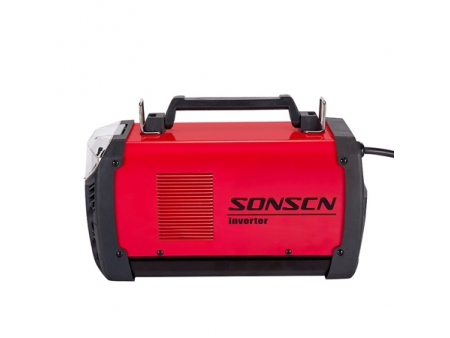

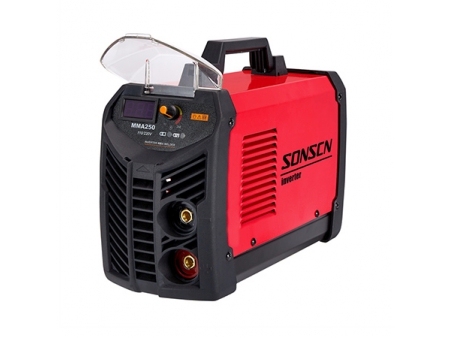

MMA Welder Type: W Bi-voltage 200 ~110/220V

MMA Welder Type: W   Bi-voltage 200 ~110/220V
MMA Welder Type: W   Bi-voltage 200 ~110/220V
MMA Welder Type: W   Bi-voltage 200 ~110/220V
MMA Welder Type: W   Bi-voltage 200 ~110/220V
MMA Welder Type: W   Bi-voltage 200 ~110/220V
Request a Quote

Welding Equipment

Your welding application needs are our concern, satisfying your challenges with proven performance

  • Advanced IGBT inverter technology: makes this welder more compact and energy saving, easy to operate and carry.
  • Dual-voltage 110/220V: equipped with dual voltage 110V/220V input power supply, which can automatically match the voltage.
  • Generator compatible: The MMA welder will be able to operate when powered by a generator.
  • Wide range of input voltages: single-phase 100-260V.
Power Voltage ~110/220V 1ph Duty Cycle 60%
Input Voltage Frequency 50/60HZ Efficiency 85%
Input Current 45/40A Welding Rod Up to 5.0mm(3/16")
Rated Input Power 9.2KVA Insulation Class H
No-load Voltage 75V Protection Class IP21S
Output Voltage 28V Cooling Type Axial ventilation
Rated Output Current at 220V 10-200A Weight 4..5kg
Rated Output Current at 110V 10-130A Dimension 35*14*23cm
Features
  • Advanced IGBT inverter technology

    Makes this welder more compact and energy saving, easy to operate and carry.

  • Dual-voltage 110/220V

    Equipped with dual voltage 110V/220V input power supply.

  • Generator compatible

    The MMA welder will be able to operate when powered by a generator.

  • Wide range of input voltages

    Single-phase 100-260V.

  • Hot start & anti-stick & built in arc force

    Provides quick and easy arc starting, stable welding arc and welding current.

  • Premium welding performance

    Support welding rods with a maximum diameter of 4.0mm (5/32"). Suitable for welding electrodes such as rutile, acidic, alkaline, stainless steel, cellulose, 7018, 6010, 6011, 6013, etc. Good performance on welding low carbon steel, carbon steel, alloy steel, stainless steel, and some non-ferrous metals.

  • Built to last

    The axial fan increases the heat dissipation of power devices, greatly extending the service life.

  • DC lift TIG capacity
  • Safety protection

    The welder is equipped with automatic compensation for overload, overheating protection, and over-current protection.

Applications
  • Welding Equipment for minor construction projects
  • Home decoration industry welding machine
  • Welding Equipment for Farm and Ranch
  • Portable Welder for Repairs and Home DIY
Standard Accessories
  • Electrode holder with cable

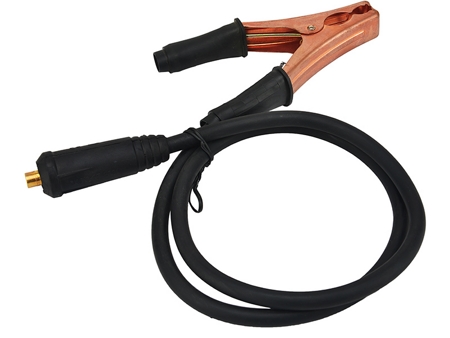

  • Earth clamp with cable
Optional Accessories
  • Plastic tool box
  • Welding mask
  • Wire brush
FAQs
This welder comes with dual voltage 110V/220 input power and can automatically switch.
The insulation class of this model is H, which means that the heat resistance level of the insulation material used in the welder is rated H, allowing for a working temperature of 180 ℃. This is a very high insulation class.
The protection class of this model is IP21S, which meets international standards.
SONSCN has become a professional welding equipment manufacturer with over 20 years of production experience. We not only provide welding machines but also offer related welding equipment accessories.
Yes, we can provide customization for welding machines and related OEM services, such as welding machine color, size, appearance, packing, performance, parameters, etc., to meet the needs of welding processes.
