Applications
- Welding equipment for minor construction projects
- Home decoration industry welding machine
- Welding equipment for farm and ranch
- Portable welder for repairs and home DIY

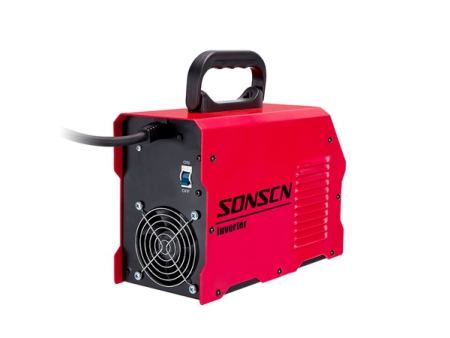

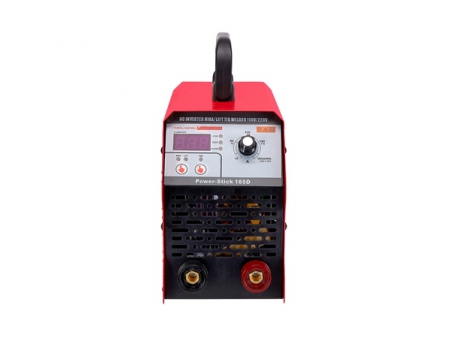

MMA Welder Type: K Bi-voltage 200 ~110/220V
Request a Quote
- Advanced IGBT inverter technology: makes this welder more compact and energy saving, easy to operate and carry.
- Dual-voltage 110/220V: equipped with dual voltage 110V/220V input power supply, which can automatically match the voltage.
- Generator compatible: The MMA welder will be able to operate when powered by a generator.
- Wide range of input voltages: single-phase 100-260V.
- Hot start & anti-stick & built in arc force: provides quick and easy arc starting, stable welding arc and welding current.
| Power Voltage | ~110/220V 1ph | Duty Cycle | 60% |
| Input Voltage Frequency | 50/60hz | Efficiency | 85% |
| Input Current | 45/40A | Welding Rod | Up to 5.0mm(3/16") |
| Rated Input Power | 9.2KVA | Insulation Class | H |
| No-load Voltage | 75V | Protection Class | IP21S |
| Output Voltage | 28V | Cooling Type | Axial ventilation |
| Rated Output Current at 220V | 10-200A | Weight | 4..5kg |
| Rated Output Current at 110V | 10-130A | Dimension | 31*13*20cm |
Features
- Advanced IGBT inverter technology
Makes this welder more compact and energy saving, easy to operate and carry.
- Dual-voltage 110/220V
Equipped with dual voltage 110V/220V input power supply.
- Generator compatible
The MMA welder will be able to operate when powered by a generator.
- Wide range of input voltages
Single-phase 100-260V.
- Hot start & anti-stick & built in arc force
Provides quick and easy arc starting, stable welding arc and welding current.
- Premium welding performance
Support welding rods with a maximum diameter of 5.0mm (3/16"). Suitable for welding electrodes such as rutile, acidic, alkaline, stainless steel, cellulose, 7018, 6010, 6011, 6013, etc. Good performance on welding low carbon steel, carbon steel, alloy steel, stainless steel, and some non-ferrous metals.
- Built to last
The axial fan increases the heat dissipation of power devices, greatly extending the service life.
- DC lift TIG capacity
- Safety protection
The welder is equipped with automatic compensation for overload, overheating protection, and over-current protection.
Standard Accessories
- Electrode holder with cable

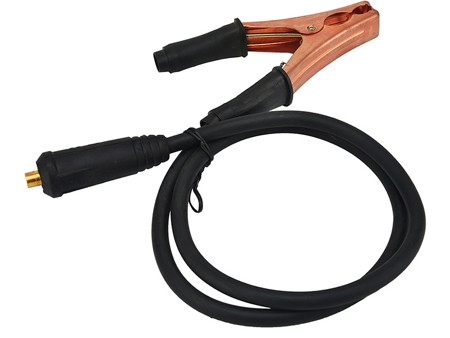

- Earth clamp with cable
Optional Accessories
- Plastic tool box
- Welding mask
- Wire brush
