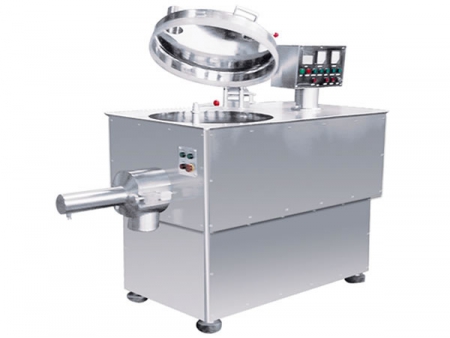

Raw powder material and adhesive are placed in a cylinder and are fully mixed by the mixing blade at the bottom of the high speed mixing granulator. The material being dried is cut by later high speed cutters into uniform granules.

Technical Parameters:
item specification
name unit 10 50 150 200 250 300 400 600
capacity L 10 50 150 200 250 300 400 600
output kg/batch 3 15 50 80 100 130 200 280
mixing speed r.p.m 300/600 200/400 180/270 180/270 180/270 140/220 106/155 80/120
admix power kw 1.5/2.2 4/5.5 6.5/8 9/11 9/11 13/16 18.5/22 22/30
cuting speed r.p.m 1500/3000 1500/ 3000 1500/ 3000 1500/3000 1500/3000 1500/3000 1500/3000 1500/3000
cuting power kw 0.85/1.1 1.3/1.8 2.4/3 4.5/5.5 4.5/5.5 4.5/5.5 6.5/8 9/11
compressed air consumption m 3 /min 0.6 0.6 0.9 0.9 0.9 1.1 1.5 1.8
weight kg 250 500 800 1000 1300 1800 2200 2600

Features:
1. The high speed mixer granulator adopts a horizontal cylinder structure.
2. Air filled sealed drive shaft.
3. To granules are put into a state of fluidization, the granules are ball shaped with excellent flowing ability.
4. Compared with traditional processes, 25% of adhesive can be saved, and the drying time is shortened.
5. Two minutes for dry mixing per batch, 1 to 4 minutes for granulating. Its efficiency is 4 to 5 times higher than traditional granulation devices.
6. Dry mixing, humid mixing and granulating are finished in the same sealed container. It is in conformity with the requirements of GMP.
7. The whole operation has strict, protective measures.
8. Optional jacket type available.
