Applications
- Welding equipment for minor construction projects
- Home decoration industry welding machine
- Welding equipment for farm and ranch
- Portable welder for repairs and home DIY

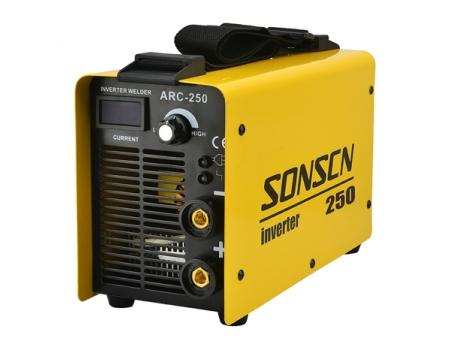

MMA Welder Type: T
Request a Quote
- Advanced IGBT inverter &MCU digital control: provides stable performance, reliability and high consistency.
- Portable & lightweight: this welder is easy to operate and carry.
- Wide range of input voltages: 155-265V (1ph) 50/60HZ.
- Generator compatible: The MMA welder type T will be able to operate when powered by a generator.
- Premium welding performance: support welding rods with a maximum diameter of 1.6mm (1/16") or 5.0mm(3/16"). The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Good performance on cellulose electrode E6010, E6011.
| Model | Power Voltage | No-load Voltage | Efficiency | Rated Input Power | Output Current Range | Duty Cycle | Electrode Diameter | Weight | Dimension |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 5.5KVA | 10-120A | 60% | 1.5-3.2mm(1/8") | 2.8kg | 28*11*17.5cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 6.1KVA | 10-140A | 60% | 1.5-3.2mm(1/8") | 3.0kg | 28*11*17.5cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 6.9KVA | 10-160A | 60% | 1.5-4.0mm(5/32") | 3.6kg | 28*11*17.5cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 8.2KVA | 10-180A | 60% | 1.5-5.0mm(3/16") | 4.0kg | 31*13*21cm |
| | 230V土10% 50/60hz(1ph) | 75V | 85% | 9.6KVA | 10-200A | 60% | 1.5-5.0mm(3/16") | 4.5kg | 31*13*21cm |
Features
- Advanced IGBT inverter &MCU digital control
Provides stable performance, reliability and high consistency.
- Portable & lightweight
This welder is easy to operate and carry.
- Wide range of input voltages
155-265V (1ph) 50/60HZ.
- Generator compatible
The MMA welder type T will be able to operate when powered by a generator.
- Premium welding performance
Support welding rods with a maximum diameter of 1.6mm (1/16") or 5.0mm(3/16"). The MMA welder can weld workpieces with a minimum thickness of 0.8mm. Good performance on cellulose electrode E6010, E6011.
- Hot start
Provides very easy, quick and reliable arc starts upon contact with the workpiece.
- Anti-stick
Avoid electrode sticking in the workpiece during welding, ensures no sticking and smooth welds.
- Built-in arc force
Provides smooth and continuous arc, ensures stable welding, and maintains deeper penetration.

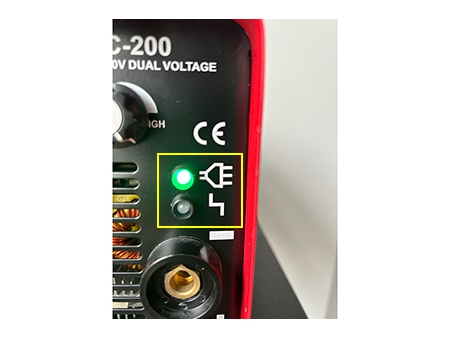

- Safety protection
The welder is equipped with automatic compensation for overload, overheating protection, voltage fluctuation, and short circuit protection.
- Lift TIG capabilities
Integrated lift-TIG functionality enables TIG welding using argon gas. You can choose stick or lift TIG mode as you want.
- Optional sizes
Come with 28*11*17.5cm or 31*13*21cm.
Standard Accessories
- Electrode holder with cable

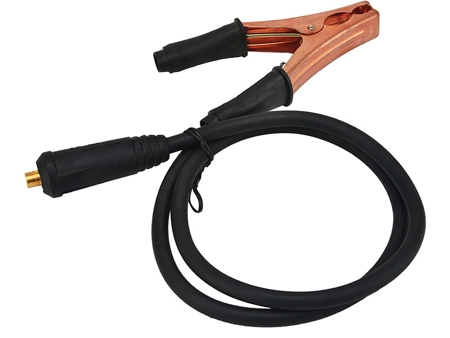

- Earth clamp with cable
Optional Accessories
- Plastic tool box
- Welding mask
- Wire brush
FAQs
It can handle welding rods with a diameter ranging from 1.6mm(1/16") to 5.0mm(3/16").
The cellulose welding is widely used in pipeline construction below X65 steel grade (L450 steel grade). Cellulose electrodes are used for vertical-down welding, which has the characteristics of fast welding speed, high production efficiency, good welding quality, and reduced consumption of welding materials.
The manual welder can handle workpieces with a thickness ranging from 0.8 mm to 13mm.
The MMA Welder Type T supports lift TIG.
Yes, it can be powered by a generator, as a movable welding machine.
MMA Welder Type T is suitable for various types of welding rods such as E7018, E6010, E6011, E6013, E308, and more.
SONSCN has over 20 years of experience as a professional welding equipment manufacturer. We not only provide welding machines, but also offer related welding equipment accessories.
Yes, after buying our welding machine, the relevant user guides are provided.
Yes, Our Products have obtained multiple patented technologies, as well as international CE certification. For more information, please click here to view.
If you have any questions about our welders, please email us or give us a call.
