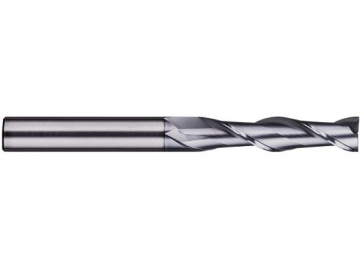

U-SH2 General Purpose Solid Carbide End Mill - Square End - 2 Flutes - Long Shank
Request a Quote
Request a quote
Unit: mm
| Order Code | Cutting Diameter (D) | Length of Cut (Lc) | Overall Length (L) | Shank Diameter (d) |
U-SH2-02006 | 2 | 6 | 75 | 4 |
U-SH2-03009 | 3 | 9 | 75 | 4 |
U-SH2-04011 | 4 | 11 | 75 | 4 |
U-SH2-05020 | 5 | 20 | 75 | 6 |
U-SH2-06020 | 6 | 20 | 100 | 6 |
U-SH2-08025 | 8 | 25 | 100 | 8 |
U-SH2-10030 | 10 | 30 | 100 | 10 |
U-SH2-12035 | 12 | 35 | 100 | 12 |
U-SH2-14036 | 14 | 35 | 150 | 14 |
U-SH2-16036 | 16 | 36 | 150 | 16 |
U-SH2-18045 | 18 | 45 | 150 | 18 |
U-SH2-20045 | 20 | 45 | 150 | 20 |
Type A: the cutting diameter is smaller than the shank diameter
Type B: the cutting diameter is equal to the shank diameter
