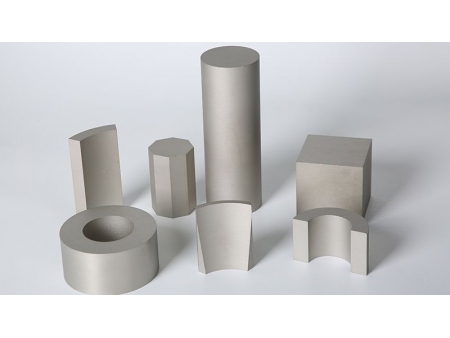

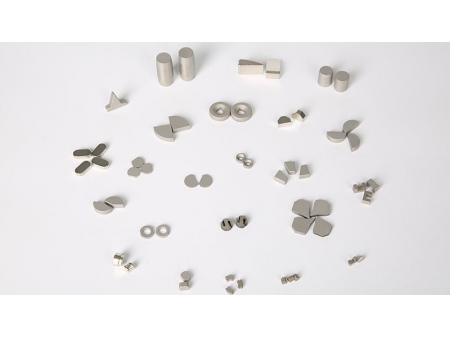

SmCo Block Magnets
- Standard Size Range: L=1-130mm, W=0.5-130mm, T=0.3-90mm
- Maximum Block Dimensions: Rectangle: L130×W100×T50mm, Square: L130×W130×T40mm, Max Magnetization Direction: 100mm
- Minimum Block Dimensions: L1×W0.5×T0.3mm
Note: For block magnets, if you desire one large dimension, other dimensions must be proportionally reduced. Achieving multiple large dimensions with a thin thickness is not feasible due to the inherent brittleness of SmCo magnets. For dimensions exceeding the above-mentioned standards, consult our technical or sales team for optimal solutions.

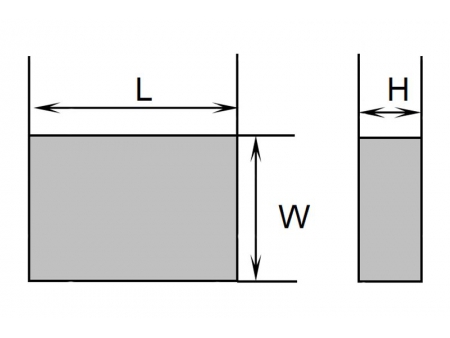

| Block | |
| L | 1-200mm |
| W | 0.5-100mm |
| H | 0.3-120mm |
| Part Number | L(inch/mm) | W(inch/mm) | H(inch/mm) |
| 12.21.280.00F1 | 0.0196 / 0.5 | 0.019 / 0.5 | 0.098 / 2.5 |
| 12.21.280.00F2 | 0.039 / 1 | 0.157 / 4 | 0.275 / 7 |
| 12.21.280.00F3 | 0.055 / 1.397 | 0.05 / 1.27 | 0.05 / 1.27 |
| 12.21.280.00F4 | 0.08 / 2.032 | 0.06 / 1.524 | 0.06 / 1.524 |
| 12.21.280.00F5 | 0.1 / 2.54 | 0.125 / 3.175 | 0.15 / 3.81 |
| 12.21.280.00F6 | 0.196 / 5 | 0.196 / 5 | 0.118 / 3 |
| 12.21.280.00F7 | 0.22 / 5.588 | 0.22 / 5.588 | 0.2 / 5.08 |
| 12.21.280.00F8 | 0.3 / 7.62 | 0.14 / 3.556 | 0.14 / 3.556 |
| 12.21.280.00F9 | 0.393 / 10 | 0.059 / 1.5 | 0.078 / 2 |
| 12.21.280.00F10 | 0.4 / 10.16 | 0.34 / 8.636 | 0.1 / 2.54 |
| 12.21.280.00F11 | 0.5 / 12.7 | 0.5 / 12.7 | 0.25 / 6.35 |
| 12.21.280.00F12 | 0.6 / 15.24 | 0.6 / 15.24 | 0.12 / 3.048 |
| 12.21.280.00F13 | 0.7 / 17.78 | 0.425 / 10.795 | 0.145 / 3.683 |
| 12.21.280.00F14 | 0.787 / 20 | 0.393 / 10 | 0.354 / 9 |
| 12.21.280.00F15 | 0.8 / 20.32 | 0.28 / 7.112 | 0.135 / 3.429 |
| 12.21.280.00F16 | 0.9 / 22.86 | 0.59 / 14.986 | 0.175 / 4.445 |
| 12.21.280.00F17 | 1 / 25.4 | 0.188 / 4.775 | 0.25 / 6.35 |
| 12.21.280.00F18 | 1.181 / 30 | 0.629 / 16 | 0.118 / 3 |
| 12.21.280.00F19 | 1.574 / 40 | 0.787 / 20 | 0.157 / 4 |
| 12.21.280.00F20 | 1.968 / 50 | 0.511 / 13 | 0.511 / 13 |
| 12.21.280.00F21 | 2 / 50.8 | 2 / 50.8 | 0.5 / 12.7 |
| 12.21.280.00F22 | 2.362 / 60 | 0.826 / 21 | 0.137 / 3.5 |
| 12.21.280.00F23 | 2.755 / 70 | 1.968 / 50 | 1.968 / 50 |
| 12.21.280.00F24 | 3 / 76.2 | 1.5 / 38.1 | 0.25 / 6.35 |
| 12.21.280.00F25 | 3.149 / 80 | 1.062 / 27 | 0.389 / 9.9 |
| 12.21.280.00F26 | 3.543 / 90 | 0.236 / 6 | 0.078 / 2 |
| 12.21.280.00F27 | 3.937 / 100 | 1.574 / 40 | 0.984 / 25 |
| 12.21.280.00F28 | 4 / 101.6 | 1 / 25.4 | 1 / 25.4 |
| 12.21.280.00F29 | 4.33 / 110 | 2.559 / 65 | 0.393 / 10 |
| 12.21.280.00F30 | 5.039 / 128 | 2.913 / 74 | 0.779 / 19.8 |
The SmCo block magnet specifications displayed here merely represent a small part of our wide array of standard high-temperature block magnets. Should you require specific dimensions that are not listed, feel free to contact us with your requirements. NGYC is committed to designing, engineering, and providing custom SmCo magnets to meet your unique needs.
Consisted of samarium and cobalt with an atomic ratio of 1:5
| Item | Unit | SmCo5 Magnet |
| Density (D) | G/Cm3 | 8.3 |
| Curie Temperature (Tc) | K | 1000 |
| Vickers Hardness (Hv) | MPa | 450-500 |
| Compressive Strength (δc) | MPa | 1000 |
| Resistivity (ρ) | Ω.Cm | 5～6×10-5 |
| Bending Strength (δb) | Mpa | 150-180 |
| Tensile Strength (δt) | Mpa | 40 |
| Coeff. of Thermal Expansion (α) | (10-6/℃) | ∥ 6 ⊥12 |
Consisted of samarium and cobalt with an atomic ratio of 2:17
| Item | Unit | Sm2Co17 Magnet |
| Density (D) | G/Cm3 | 8.4 |
| Curie Temperature (Tc) | K | 1100 |
| Vickers Hardness (Hv) | MPa | 550-600 |
| Compressive Strength (δc) | MPa | 800 |
| Resistivity (ρ) | Ω.Cm | 8～9×10-5 |
| Bending Strength (δb) | Mpa | 130-150 |
| Tensile Strength (δt) | Mpa | 35 |
| Coeff. of Thermal Expansion (α) | (10-6/℃) | ∥ 8 ⊥11 |
Please note that the above values are for reference purposes only and should not be used as the sole basis for material acceptance or rejection.
