Top hammer drilling tools

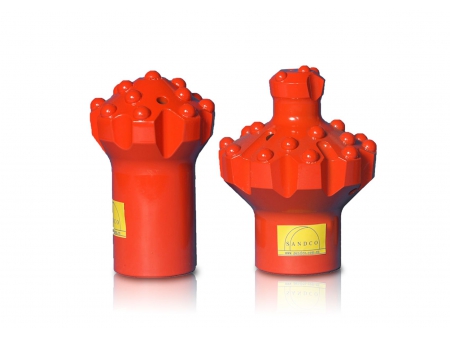

SANDCO’s reaming bits can be used with drill and drifter to drill smooth holes, especially the ones with large diameters. To accommodate customer-specific installation needs, our reaming bits can be made with different thread types, like R32, R38, T38, T45 and T51. Also, two kinds of reaming bits are supplied, one is integral reaming bit, and the other, split-type reaming bit.

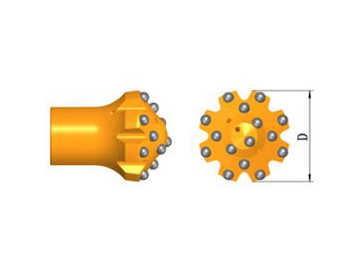

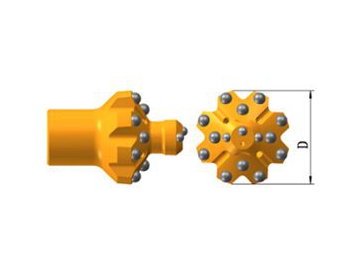

| Reaming Bits | D | Buttons × Button Diameter | Gauge Button Angle | Thread | ||
| Dome Reaming Bit | mm | inch | Gauge Button | Face Button | ||
| 89 | 3 1/2 | 12×12 | 3×10 | 35° | R32 |
| 102 | 4 | 12×13 | 3×10 | 35° | R32 |
| 127 | 5 | 12×13 | 3×13 | 35° | R35 |
Reaming Bit

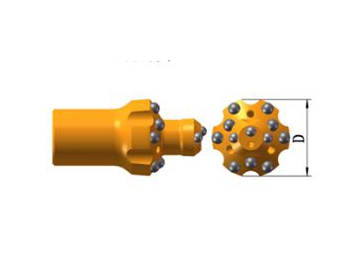

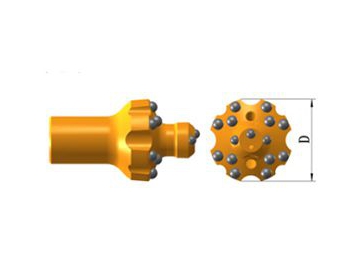

| Reaming Bits | D | Buttons × Button Diameter | Gauge Button Angle | Thread | ||
| Dome Reaming Bit | mm | inch | Gauge Button | Face Button | ||
| 64 76 | 2 1/2 3 | 9×10 9×11 | 3×10 3×10 | 35° 35° | R28 R38 |

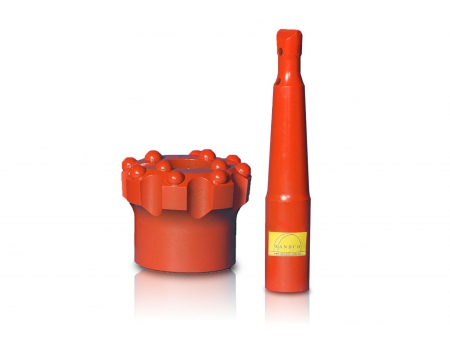

Reaming Bit with Pilot Adapter
