Components of Rotary Screw Air Compressor
1. The double-screw air-end
Adopt German technology GU air end which is third generation asymmetric double screw air end, axial air-inlet design. The design life of durable NFK bearing is over 120,000 hours.

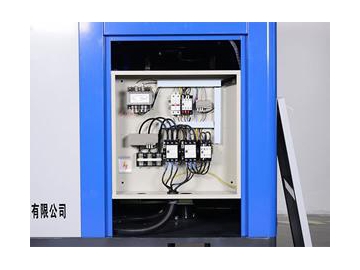

2. Efficient and reliable motor
Use more efficient and reliable operate continuously motor which have passed the CE authentication, ingress protection IP23, class F insulation grade.

3. High quality and reliable valve
Thousands of reliability and safety testing ensure the quality and durability of inlet valve, minimum pressure valve, thermostatic valve, safety valve.

4. High-quality filter
Adopt own brand oil-air separator, oil filter, air filter element, safe and reliable. Oil-air separator separate thoroughly which oil content less than 3 PPM; Air filter and oil filter are efficiency and long service life.

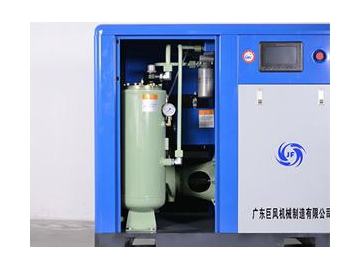

5. Oil-air separator
The highly efficient oil-air separator presents triple separation of centrifugal, gravity and filtration, leading the remaining oil less than 3ppm.

1st Separation: Centrifugal
The mixture of compressed air inside the compressor and the oil revolve in the separator under the centrifugal force.

2nd Separation: Gravity
After the centrifugal separation, the oil-air mixture punches the inside wall of oil-air vessel, and flow to the bottom of the vessel. At the bottom, the magnetic filter removes the iron powder and other small metals sucked together with air, preventing the scratch of separator.

3rd Separation: Filtration
It adopts the folding oil-air separator to increase the area.
With the fiber as the main body, the cylinder filter collects the atomizing lubricant from the air.

6. English/ Chinese LCD microcomputer touching panel
Screw air compressor control system is applied in English and Chinese LCD touching controller. Support the remote control and chain control. Communication port for RS 485, Modbus communication protocols, can choose other communication agreement.

1) Features of microcomputer controller
1. English and Chinese LCD touching panel;
2. All-round protection of motor with short circuit, plugging turn, phase lack, overload, unbalance;
3. The starting and stopping control of the motor;
4. Protection and measurement of compressor reversal protection;
5. The multiple temperature detection and display;
6. Automatic adjustment of compressor loading, ensure the stabilization of pressure;
7. Long-distance or local control;
8. Multi-machine or single machine operation control;
9. RS-485 communication function;
10. GPRS mobile remote control. (Optional)

2) Microcomputer controller warnings and prompt functions
1. Warning indication of air filter replacement;
2. Warning indication of oil filter replacement;
3. Warning indication of oil-air separator replacement;
4. Warning indication of oil replacement.

3) Microcomputer controller safety protection
1. Protection motor: compressor motor protection of short circuit, plugging turn, phase lack, three phase power imbalance;
2. Compressed air high temperature protection;
3. Protection of compressor reversal;
4. Protection of excessive pressure;
5. Protection of temperature sensor and pressure sensor;

Applications of Screw Air Compressor
Jufeng air compressor is widely used in all kinds of industries around the world, including electronics, electricity, water, electricity, environmental protection, petroleum, chemical, mining, metallurgy, pharmaceutical, food, aviation, shipbuilding, military, scientific research, wood, textile, printing, glass, construction, building materials and other fields.

Air compressors can be grouped into three classifications: consumer grade, professional grade and industrial grade.
• Consumer grade air compressors can be described as a pancake or single-stage model. They're used for household tasks like inflating tires and inflatable products and possibly some low-load air tools like staplers and brad guns.
• Professional grade air compressors provide more power and higher pressurized air. They could be two-stage reciprocating models or rotary screw models and can provide more power to run several air tools at once with intermittent use.
• Industrial grade air compressors will be the workhorse of a manufacturing plant or the reliable power source on an oil rig. They are designed to provide a steady flow of compressed air for long periods of time and can take fluctuating surges in use typical in major manufacturing plants. These compressors are built with high-quality components that allow for customization to the specific environment to improve performance, energy efficiency and reliability.

Precautions of Screw Air Compressor
1. Srandard Power: 380V/50HZ/3PH, 415V/220V/60HZ and other voltage can be customized.
2. Starting method: 10A or below direct starting,15A or above star-delta srarting.
3. Working environment temperature: -5℃-45℃;
4. Driven method: Belt driven / Direct driven.
5. Welcome request & inquiry of customized the pressure up to 16 bar
6. The company on product improvement and reserves the right of design improvement parameters are subject to change without prior notice.

About the maintenance:
1st maintenance: After 500 hours of running
2nd and subsequent maintenance: Every 2000 to 2500 hours of running

Technical Parameters
Belt Drive Air Compressor

Model	Power	FAD (m³/min)	Pressure (Mpa)	Dimension LWH	Weight (kg)	Noise	Outlet Pipe Diameter
JF-7.5A	5.5kw	0.85	0.7	800×720×950	240kg	62±2	G1/2"
		0.78	0.8
		0.65	1
		0.55	1.2
		0.48	1.3
JF-10A	7.5kw	1.2	0.7	800×720×950	250 kg	64±2	G1/2"
		1.1	0.8
		0.9	1
		0.75	1.2
		0.65	1.3
JF-15A		1.65	0.7	950×800×1160	350 kg	66±2	G3/4"
		1.5	0.8
	11kw	1.3	1
		1.1	1.2
		1	1.3
JF-20A	15kw	2.5	0.7	950×800×1160	400 kg	67±2	G3/4"
		2.3	0.8
		2.1	1
		1.9	1.2
		1.7	1.3
JF-25A	18.5kw	3.2	0.7	1150×900×1380	550 kg	69±2	G1"
		3	0.8
		2.7	1
		2.4	1.2
		2.1	1.3
JF-30A	22kw	3.8	0.7	1150×900×1380	600 kg	69±2	G1"
		3.6	0.8
		3.2	1
		2.7	1.2
		2.3	1.3
JF-40A	30kw	5.3	0.7	1150×900×1380	650 kg	71±2	G1"
		5	0.8
		4.5	1
		4	1.2
		3.6	1.3
JF-50A	37kw	6.8	0.7	1320×1000×1500	800 kg	72±2	G11/2"
		6.2	0.8
		5.6	1
		5	1.2
		4.5	1.3
JF-60A	45kw	7.4	0.7	1320×1000×1500	900 kg	73±2	G11/2"
		7	0.8
		6.2	1
		5.6	1.2
		5	1.3
JF-75A	55kw	10	0.7	1600×1170×1580	1300 kg	74±2	G11/2"
		9.2	0.8
		8.5	1
		7.6	1.2
		6.9	1.3

Direct Drive Air Compressor

Model	Power	FAD (m³/min)	Pressure (Mpa)	Dimension (LWH)	Weight (kg)	RPM	Noise	Outlet Pipe Diameter
JF-10AZ	7.5kw	1.2	0.7	1000×700×900	210kg	1470	65±2	G1/2"
		1.1	0.8
		1.7	0.5
JF-15AZ	11kw	1.8	0.7	1050×750×1000	380kg	2920	67±2	G3/4"
		1.7	0.8
		2.5	0.5
JF-20AZ	15kw	2.4	0.7		400kg		67±2	G3/4"
		2.3	0.8
		1.8	1
		1.7	1.2
		3.2	0.5
JF-25AZ	18.5kw	3.2	0.7	1380×850×1160	510kg	2940	69±2	G1"
		3	0.8
		2.6	1
		2.5	1.2
JF-30AZ		3.9	0.5				70±2	G1"
	22kw	3.8	0.7		520kg
		3.6	0.8
		3.1	1
		2.9	1.2
JF-40AZ		5.3	0.5	1380×850×1160	610kg
	30kw	5.2	0.7			2950	72±2	G1"
		5	0.8
		4.2	1
		4	1.2
JF-50AZ		6.8	0.5	1500×1000×1320	750kg		72±2	G11/2 "
	37kw	6.7	0.7
		6.2	0.8
		5.2	1
		5	1.2
JF-60AZ		7.4	0.5	1500×1000×1320	760kg		74±2	G11/2 "
	45kw	7.4	0.7
		7	0.8
		6.3	1
		6	1.2
JF-75AZ		10.1	0.5	1900×1250×1600	1200kg	2970	76±2	G2"
	55kw	10	0.7
		9.6	0.8
		8	1
		7.6	1.2
JF100AZ		13.5	0.4	2000×1250×1670	1350kg		76±2	G2"
		13.4	0.5
	75kw	13.4	0.7
		12.6	0.8
		11	1
		10.5	1.2
JF-120AZ	75kw	16.4	0.4		1570kg	2970	78±2	G2"
		16.2	0.5
	90kw	16	0.7
		15	0.8
		13	1
		12.5	1.2
JF-150AZ	75kw	21.2	0.4	2500×1470×1840	2150kg		78±2	G21/2 "
	90kw	21.1	0.5
	110kw	21	0.7
		19.8	0.8
		17	1
		16.4	1.2
JF-175AZ	90 kw	24.8	0.4	2500×1470×1840	2190kg	2970	78±2	G21/2 "
	110 kw	24.6	0.5
	132 kw	24.5	0.7
		23.2	0.8
		20	1
		19.4	1.2
JF-200AZ	110 kw	29	0.4	3000×1600×1840	2650kg		81±2	G21/2 "
	132 kw	28.7	0.5
	160kw	28.7	0.7
		27.6	0.8
		23.5	1
		22.8	1.2
JF-250AZ	132kw	32.5	0.4	3000×1600×1840	2720kg	2975	81±2	G21/2 "
	160kw	32.2	0.5
	185kw	32	0.7
		30.4	0.8
		27.4	1
		26.8	1.2
JF-300AZ	160kw	36.5	0.4	3200×1980×2150	4150kg		84±2	G3" /DN100
	185kw	36.2	0.5
	220kw	36	0.7
		34.3	0.8
		30	1
		29.2	1.2
JF-350AZ	185kw	42.8	0.4	3200×1980×2150	4500kg	2980	84±2	G3" /DN100
	220kw	42.4	0.5
	250kw	42	0.7
		40.5	0.8
		36.2	1
		35.5	1.2
JF-430AZ	220kw	52	0.4	3800×2000×2050			86±2	G3" /DN110
	250kw	51.3	0.5
	315kw	51	0.7
		50.2	0.8
		41.5	1
		40.5	1.2
JF-480AZ	315kw	66	0.5	3800×2000×2050		2980	84±2	DN125
	355kw	65.2	0.7
		62	0.8
		54.5	1
		46.8	1.2
JF-540WZ	400kw	73.5	0.7	3500×2000×2050			84±2	DN150
		72	0.8
		63.1	1
		54.2	1.2
