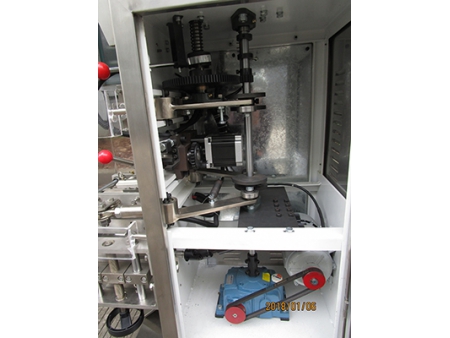

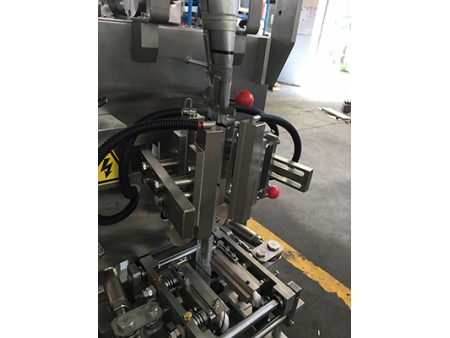

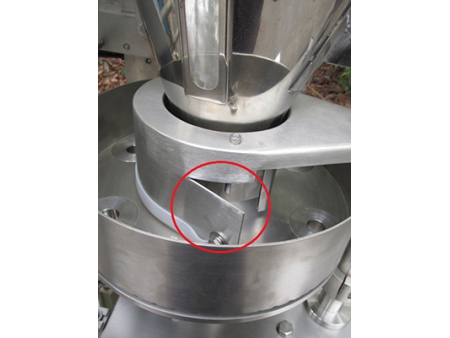

The vertical form fill seal machine is a combination of the main machine and volumetric weigher to carry out film tranport and tension, bag forming, filling, weighing, sealing, cutting, counting and other functions. This packaging system takes advantage of volumetric weighting principles, making it suitable for packing of granules with a weight range of 0.5-200g. This packing machine features a mechanical drive, a simple running, and easy operation. The film rolling position is also synchronously controlled by the motor. In the event of any errors, an alarm will display on the operation interface.

The following are the types of vertical form fill seal machine produced by Siyuan:

1) SYK-240 3/4 side seal pouch packaging machine
Rolling film width 240mm
Sachet Type 3 side seals/4 side seals
Sachet Width 30-120mm
Sachet Length 30-170mm
Measurement Range 1-80ml
Speed 30-60 sachets/minute
Power Supply 220V 50HZ
Power 1785W
Net Weight 200KG
Dimension of the Machine 650x750x1600mm
2) SYK-300 3/4 side seal pouch/pillow pack machine
Rolling film width 300mm
Sachet Type 3 side seals /4 side seals/pillow pack
Sachet Width 30-150mm
Sachet Length 30-170mm
Measurement Range 1-80ml / 10-350ml
Speed 30-60 sachets/minute
Power Supply 220V 50HZ
Power 2145W
Net Weight 250KG
Dimension of the Machine 850x750x1700mm

Applicable industry:
Food industry: seeds, instant coffee, soybean etc.
Medical industry: pill, capsule etc.
Daily chemical industry: desiccant, seeds, detergent, feed etc.

Package material:
This vertical form fill seal machine uses a variety of composite membranes, such as PET/PE, Paper/PE, PET/AL/PE, OPP/PE, PET/APET/PE, BOPP/PE and more.

Packaging bag style:

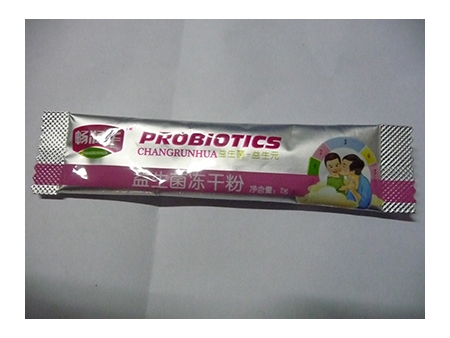

3 side seal pouch, 4 side seal pouch, pillow pack, pillow pack with hang hole

  • 3 side seal pouch
  • 4 side seal pouch
  • pillow pack
  • pillow pack with hang hole
  • 3 side seal pouch
  • 2 side seal pouch
  • 2 side seal pouch
  • 4 side seal pouch
Features

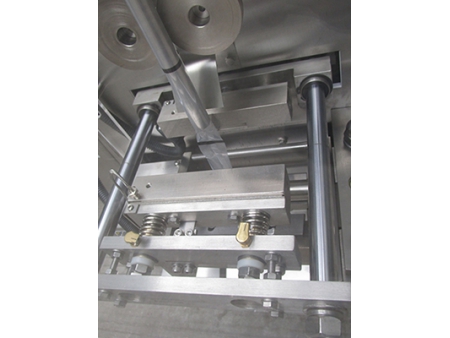

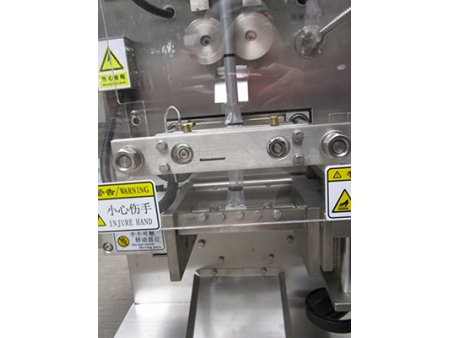

  • The vertical form fill seal machine has two optional cutters: serrated cutter and flat blade which can be used to produce packages with serrated edges or flat edges.

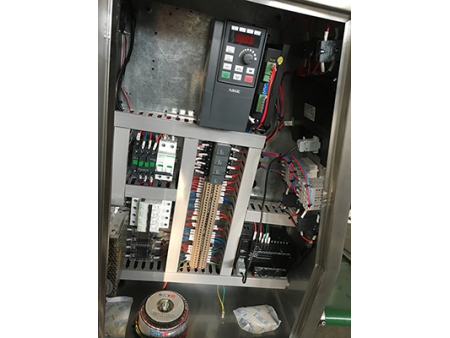

  • This packaging machine uses a simple, intuitive OMRON PLC control. It is also equipped with an intelligent temperature control instrument to ensure a higher quality sealing.
  • The bag length is controlled by PLC or color code tracking with an optoelectronic switch, so that the packaging length can be exchanged freely. Operation is easy and saves time.
  • The temperature features independent PID control so the machine is suitable for various packaging materials.
  • The overall structure is a smooth, easy to clean stainless steel frame.
