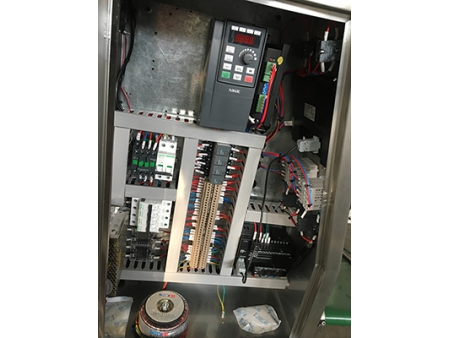

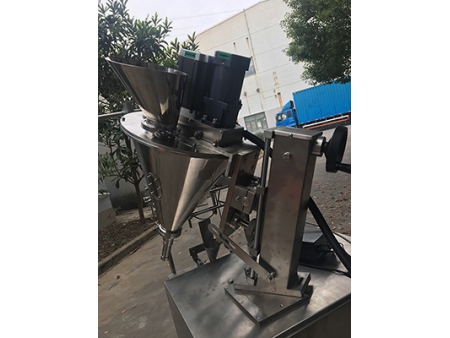

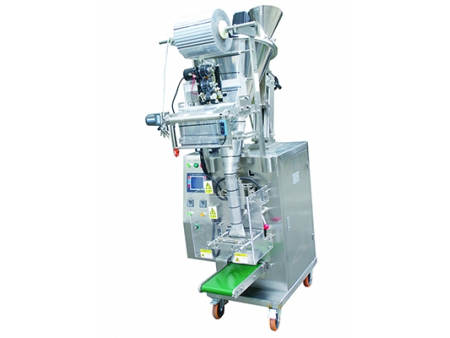

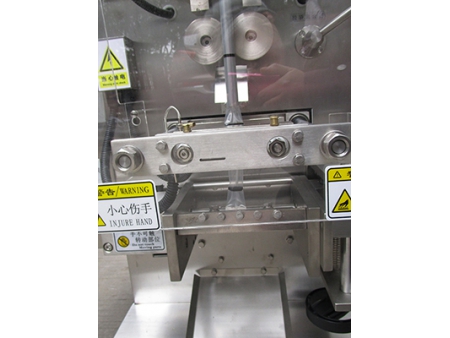

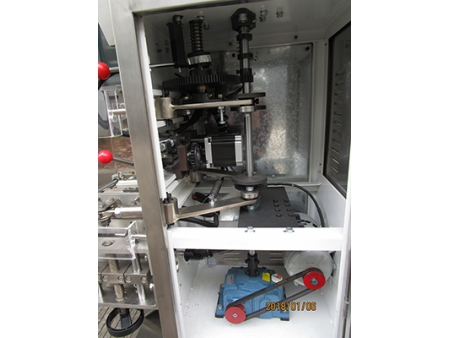

The vertical form fill seal machine (auger filling) carries out film transport and tension, bag forming, filling, weighing, sealing, cutting, counting and other functions. It is suitable for powder materials and is a combination of an auger system and main machine. This packaging equipment features a mechanical drive with a simple, easy operation and running. The mechanical drive is controlled using a stepping motor, and is equipped with an automatic alarm system. It will sound automatically when there is no film or the color code cannot be tracked.

The following are the types of packaging machine produced by Siyuan:

1) SYK-240
Sachet Type 3 side seals/4 side seals
Sachet Width 30-120mm
Sachet Length 30-170mm
Measurement Range 5-100ml
Speed 40-60 sachets/minute
Power Supply 220V 50HZ-60HZ
Power 1400W
Net Weight 200KG
Dimension of the Machine 800x1200x1700mm
2) SYF-300
Sachet Type 3 side seals /4 side seals/pillow pack
Sachet Width 30-150mm
Sachet Length 30-170mm
Measurement Range 5-300ml
Speed 40-60 sachets/minute
Power Supply 220V 50HZ-60HZ
Power 1700W
Net Weight 250KG
Dimension of the Machine 920x1200x1700mm

Applicable industry
Food industry: flour, starch, milk powder, protein powder etc.
Medical industry: medicinal powder etc.
Daily chemical industry: additive, cocoa powder, chemical materials etc.

Package material
This vertical form fill seal machine (auger filling) features various kinds of composite membrane such as PET/PE, Paper/PE, PET/AL/PE, OPP/PE, PET/APET/PE, BOPP/PE and more.

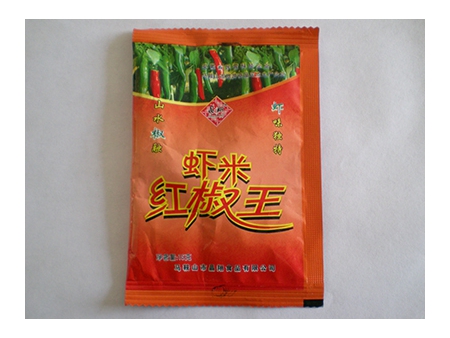

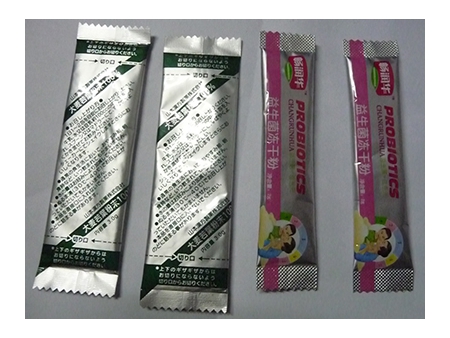

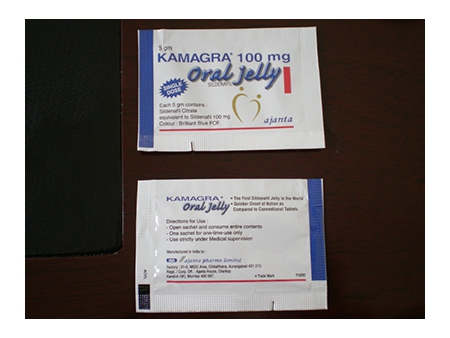

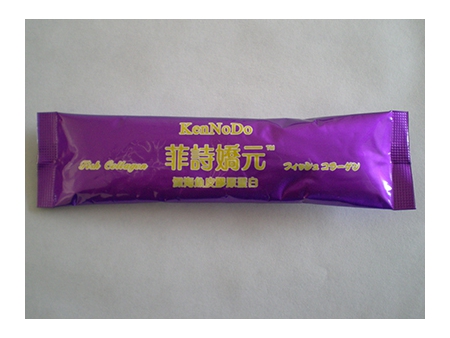

Packaging bag style
  • 2 side seal pouch
  • 2 side seal pouch
  • 2 side seal pouch
  • 3 side seal pouch
  • 4 side seal pouch
