Front Position Lamp/ Front End-Outline Marker Lamp
Description

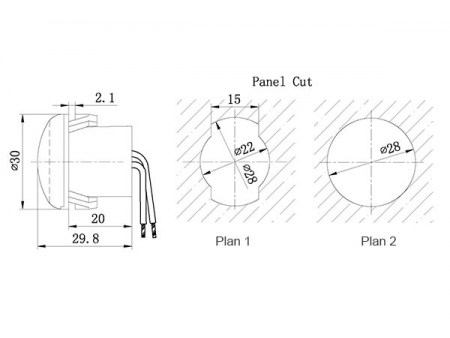

The front position lamp has a recessed installation, making it easy to install. Our front end-outline marker lamp is suitable for 1-2 mm thick panels, with the cutting size of the mounting hole listed below.
- AL30-FPL
- AL30C-FPL
- AL1080-FMR
- AL27-FPL
- AL28-FPL
Specification:
Operating Voltage: DC12V, DC24V, DC9~33V
Operating Temperature: -40~65℃
Light source: high power LED, 0.5W
Outer lens: UV resistant PMMA
IP67
Comply with ECE/ADR/SAE/GB requirements
E-mark approved
Specification:
Operating Voltage:DC12V,DC24V,DC9~33V
Operating Temperature:-40~65℃
Light source: high power LED,0.5W
Outer len: UV resistant PMMA
IP67
Comply with ECE/ADR/SAE/GB requirements
E-mark approval
Specification:
Operating voltage: DC12V or DC24V
Operating temperature: -40℃~ 65℃
Light source: 5pcs of super flux SMT LEDs
Lens: clear lens with retro reflector
Photometric performance: comply with ECE R3, R7 & SAE J592, J594 requirements
IP67, polarity-free
E-mark approved!
Specification:
Operating Voltage: DC12V, DC24V
Operating Temperature: -40~65℃
Light Source: 4pcs high efficiency SMT LEDs
IP67
Comply with ECE/ADR/SAE/GB requirements
E-mark Approval
Specification:
Operating voltage: DC12V or DC24V
Operating temperature: -40℃~ 65℃
Light source: 2pcs of high light efficiency LEDs, white light
Lens: clear lens
Photometric performance: comply with ECE R7 and SAE J222 requirements
E-MARK approved
IP67
Applications:
The front end position lamp is widely used in busses, trailers, trucks, recreational vehicles and special vehicles.
