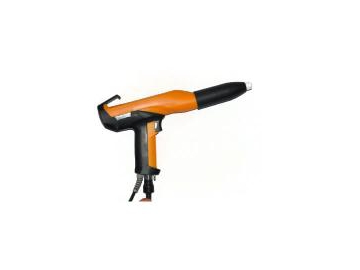

Manual Powder Coating Spray Gun CL-161S
Only in COLO could you find the CL-161S manual powder coating spray gun as a new generation of manual powder coating system!
Controls are located on the well-balanced spray gun. They are customizable and easy to use.
Specifications of Powder Coater
Gun weight: 500G
Rated output voltage: 24VDC
Input voltage: -200KV
Maximum output current: 180uA
Maximum output voltage: 0-100KV (adjustable)
Maximum powder injection: 600g/min
Polarity: negative (-)
Pneumatic Data
Maximum input-air pressure: 10kg/cm
Optimum input-air pressure: 6kg/cm
Minimum input-air pressure: 4kg/cm
Maximum water vapor content or compressed air: 1.4g/Nm3
Maximum oil vapor content of compressed air: 0.1ppm

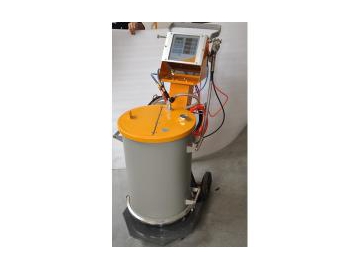

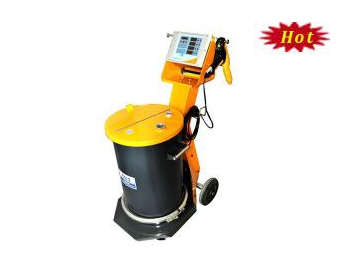

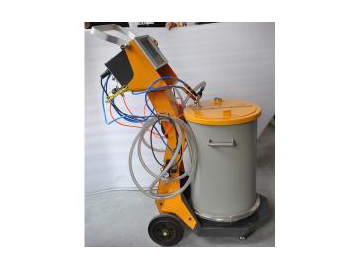

It is an innovative solution that can deliver high performance. The trolley with simple design can be used easily, and it can rotate in 360 degrees.
This powder spray system can spray all kinds of powders to achieve any complex shape. This high quality machine provides outstanding spraying effect.
It controls more accurately the current and the voltage.
The coatings are more uniform.
It maximizes the efficiency.
