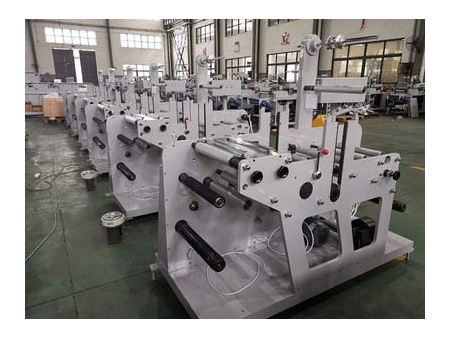

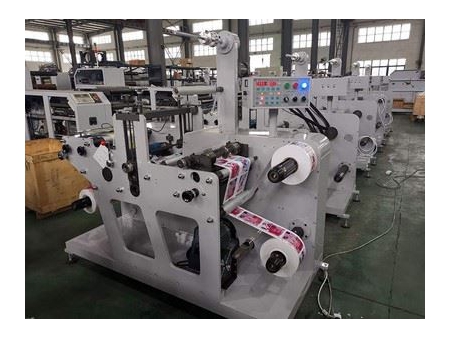

Label Slitting Machine with Rotary Die-cutting Station

Label Slitting Machine with Rotary Die-cutting Station
Label Slitting Machine with Rotary Die-cutting Station
Label Slitting Machine with Rotary Die-cutting Station
Request a Quote
View All: http://witymachinery.com/1-15-label-slitting-machine-10.html
Features
  • DK-G label slitting machine is equipped with a high accurate rotary die-cutting system.
  • It can finish die cutting, laminating (optional), and slitting at a stroke, and is ideal for processing blank adhesive labels.
  • It has the function of automatic meter counting, automatic stop, and web guiding by photocell.
  • The label slitting machine has the characteristic of compact structure, fast speed, high efficiency, easy operation, accurate slitting and steady operation, etc.
Specification
Model
DK-320G
DK-450G
Slitting speed 75m/minute 75m/minute
Die-cutting speed 60m/minute 60m/minute
Die-cutting repeat length 177-476mm 177-476mm
Max web width 320mm 450mm
Max unwinding diameter 500mm 500mm
Max rewinding diameter 480mm 480mm
Overall dimension 1.6 ×0.9 ×1.3 m 1.6 ×1.1 ×1.3 m
Voltage 220v±10% 220v±10%
Weight About 600kg About 650kg
