Net Knitting Machine
Request a Quote
RMD8 Raschel Machine
Raschel warp knitting machine with double needle bar for producing sports barrier nets, containment nets and pallet nets
Applications

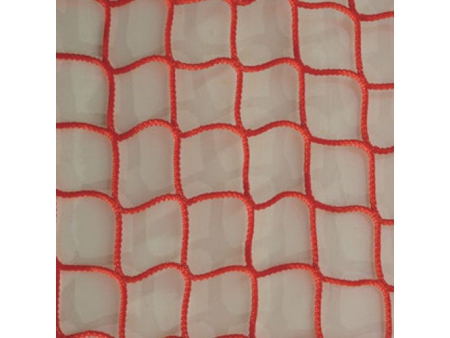

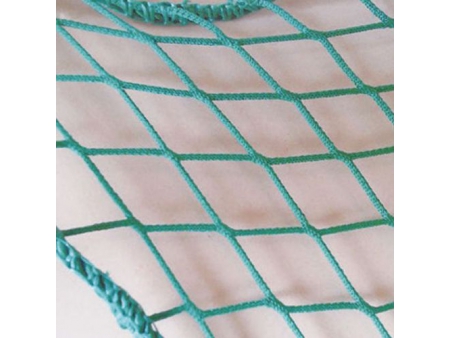

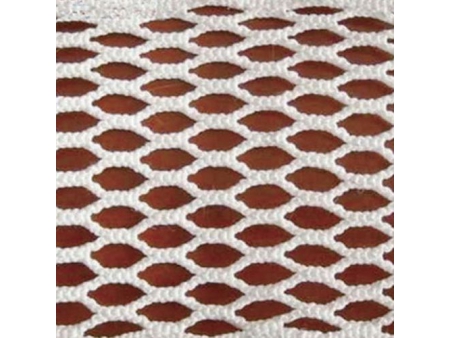

Sports barrier nets, containment nets and pallet nets
Features
- This machine works with an open cam-linkage drive.
- The double need bar bed net knitting machine uses a special extra-large latch needle for better machine adaptability.
- The net knitting machine has functions of electronic yarn let-off, electronic batching, and electronic guide bar control (EL).
Specifications
- Needle type Individual latch needle, block latch needle
- Gauge E4, E6, E9, E12
- Number of bars 8 bars
- Working width 138"/175"/270"
- Max. speed 500 rpm
| Machine Model | Dimensions (L×W×H) | Floor Area (m²) | Machine Weight (kg) | Total Power (kW) |
| 5500×5500×3400 | 30.25 | 11000 | 15.75 | |
| 6400×5500×3400 | 35.2 | 13000 | 15.75 | |
| 8054×5500×3700 | 44.3 | 35000 | 23 |
