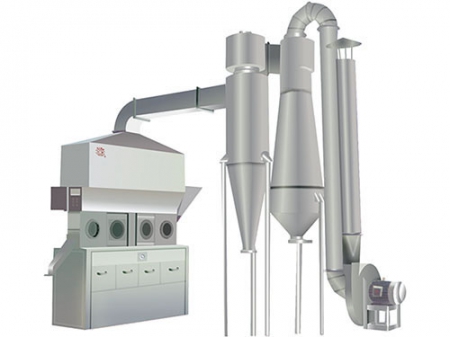

The series fluid bed dryer is a common piece of equipment found in pharmaceutical applications. It consists of an air filter, fluid bed and cyclone separator. There are two kinds of operation for this machine, continuous and intermittent.

Applications
This equipment is used for the drying processes of various medicines, grain processing and many other applications. The ideal material diameter range is 0.5-3mm.

Parameters
Model/items Drying capacity kg/h Power of fan Air pressure /Pa Air amount m3/h Temperature of inlet air /℃ Max consumption /J Way to feed materials
XF10 10-15 7.5 5.5×103 1500 60-200 2.0×108 1. unloading valve
2. Pneumatic conveying
XF20 20-25 11 5.8×103 2000 60-200 2.6×108
XF30 30-40 15 7.1×103 3850 60-200 5.2×108
XF50 50-80 30 8.5×103 7000 60-200 1.04×109

Notes: The drying capacity is measured under such conditions: the primary moisture of crystal of plum is 20% and its final moisture is 5% and the temperature of air inlet is 130℃. The Drying capacity of other raw materials depends on the actual condition. While choosing models, please note that: Model A should be equipped with cyclone separator; Model B with internal dust collector; Model C with cyclone separator and dust collector.

Installing chart
  • Cyclone separator with dust collector
    1. Main machine
    2. Cyclone separator
    3. Heater
    4. Dust collector
    5. Feeder
    6. Operating platform
    7. Fan

  • Cyclone separator
    1. Main machine
    2. Cyclone separator
    3. Heater
    4. Feeder
    5. Fan
    6. Operating platform

Machine Principle
The filtered hot air enters the fluid bed through a distributor valve plate and wet material is fed from the feeder. The drying machine effectively removes the moisture from the wet material and leaves behind dry materials.
