Fluid Bed Dryer, FL Series
Request a Quote
FL series fluid bed dryer is an ideal for drying water-containing solids, it is widely used in pharmaceutical, chemical, foodstuff and health care industries.
Features
- Enclosed design of operating system prevents cross contamination;
- Accurate temperature control with low fluctuation;
- Two filtering chambers allow the bag shaking to be alternated between these two, thus guaranteeing the continuous fluidization process;
- German advanced polishing technique provides better appearance of the machine;
- User interface is designed with animations for visualization, easy to operate;
- Key connection parts are imported from Germany, ensuring high safety and durability;
- Simple structure, fast disassembly for easy cleaning without dead corner, meeting the requirements of cGMP production standards;
- Specially designed air distribution structure provides even distribution of airflow and better production efficiency, resulting a stable and reproducible quality of the final products;
Technical Specifications
| Model | |||||||||
| Material container | Capacity | L | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| Diameter | mm | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| Output | Kg/time | 10-15 | 15-30 | 30-60 | 60-120 | 100-200 | 150-300 | 250-500 | |
| Steam | Pressure | MPa | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Consumption | Kg/hour | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
| Compressed air | Pressure | MPa | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Consumption | m3/min | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1.1 | 1.1 | |
| Fan power | Kw | 7.5 | 11 | 15 | 18.5 | 30 | 45 | 55 | |
| Electric heating power | Kw | 30 | 36 | 45 | 54 | 63 | 120 | 180 | |
| Dimension | (L×W×H) | m | 1.25X0.75X2.1 | 1.6X0.9X2.5 | 1.85X1.25X3 | 2.2X1.65X3.5 | 2.34X1.7X3.8 | 2.8X1.9X4.2 | 3X2.25X4.6 |

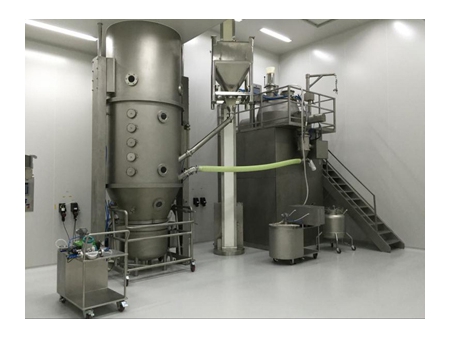

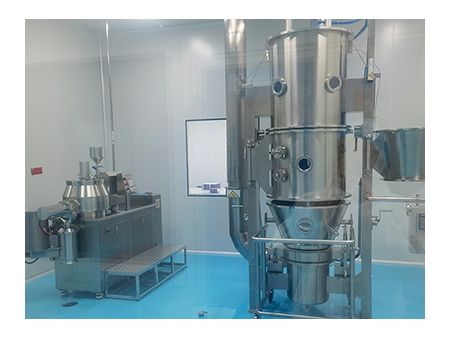

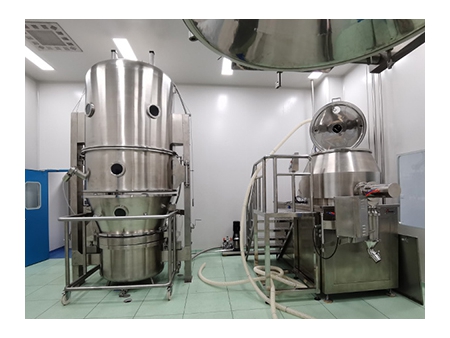

User workshop
Related products
Send Message
Other Products
Most Recent
More
Other Products

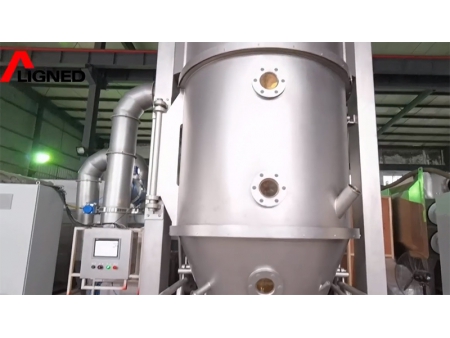

Videos
