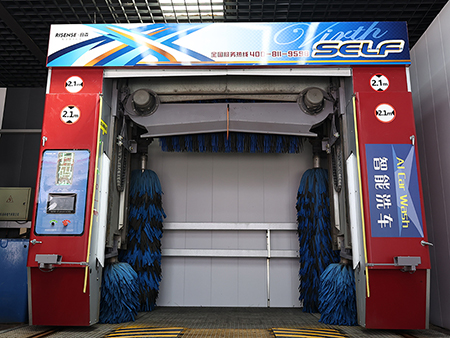

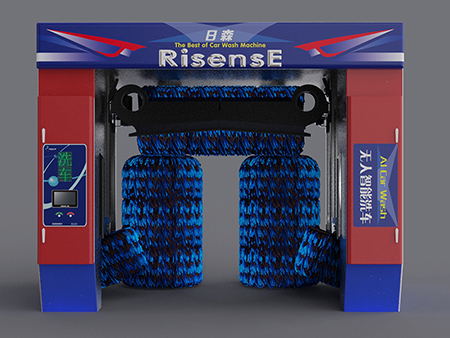

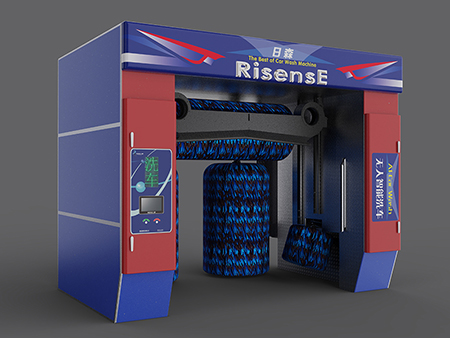

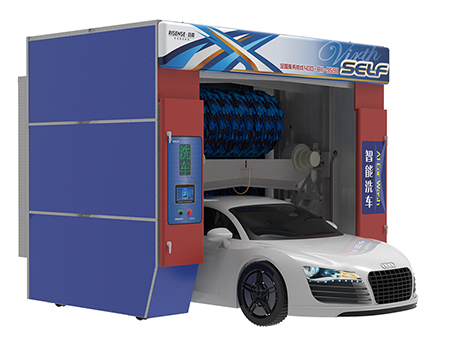

Rollover Car Wash Machine CF-360 (EU Type)
The car wash system EU type (CF-360) is a car wash machine with tire brushes, which clean the tires during the washing process, improving the car washing completeness. The double powerful mute dryers are used to increase the drying performance. The table below shows the basic information about the car wash system EU type.
- Parameters
- Advantages
- Details
- Configurations
| Rollover car wash machine CF-360 | |
| Overall dimension | 2400*3600*2900mm |
| Rail: 9000*3200mm | |
| Installation size | 10000*4300*3200mm |
| Voltage | AC 380V 50Hz (total power: 17.96KW) |
| Water supply | Pipe diameter: DN25, water flow≥80L/min |
| Air-source pressure | 0.75-0.9Mpa |
| Ground flatness | Deviation≤10mm |
| Available car to wash | Car/jeep/coach within 10 seats |
| Moving range | 5400*2100 (mirror folding)*2100m |
| Car wash capacity | One rollover: 3'20'', two rollover : 7'10'' |
| Water consumption | 72-95L/car |
| Power consumption | 0.46-0.70kWh/car |
| Shampoo consumption | 10ml/set |
| Wax consumption | 15ml/set |
| Short vertical brushes | 2 |
| Long vertical brushes | 2 |
| Top brush | 1 |
| Frame | ZFC alloy steel hot-dipped galvanized steel frame |
| Brush material | The 4th-generation foam brush |
| Control system | MCU (Risense) |
| Optoelectronic monitoring | Banner from the USA |
| Proximity switch | Pepperl Fuchs from Germany |
| Contactor | Siemens from Germany |
| Solenoid valve | Pinguan |
| Thermal relay | Schneider from France |
| MCCB | Schneider from France |
| Motor protector | Schneider from France |
| Intermediate relay | Honeywell from the USA |
| Elevating motor with brake | SITI |
| Brush rotating motor | SITI |
- Fully automatic: microcontroller unit (MCU) ensures high efficiency and low failure rate, and allows for remote upgrading.
- The corrosion resistance of the galvanized door-shaped frame of the vehicle washing equipment is the 10-20 times that of hot galvanized plate, increasing the service life.
- Two powerful air mute dryers can follow contours of vehicles to improve the drying effect.
- Foam and water wax proportioning system is easy to operate.
- Two-Click washing method simplifies operation.
- Built-in self-diagnose system can recognize and remove obstacles during car washing.
-

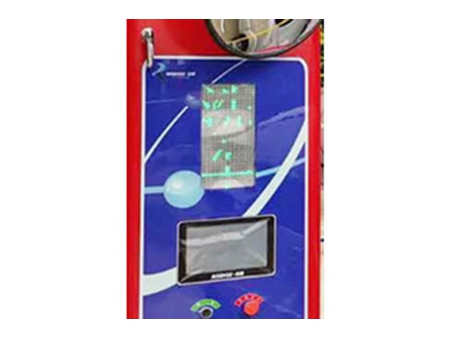

Control panel
-

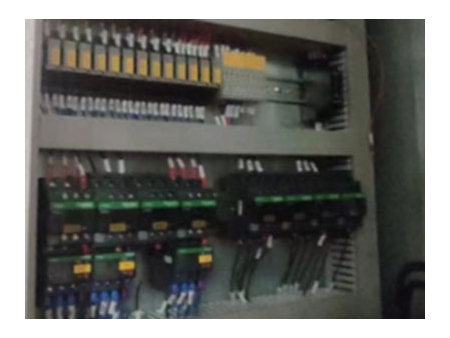

MCU control system
-
High pressure pump
-
Foam material brush
-

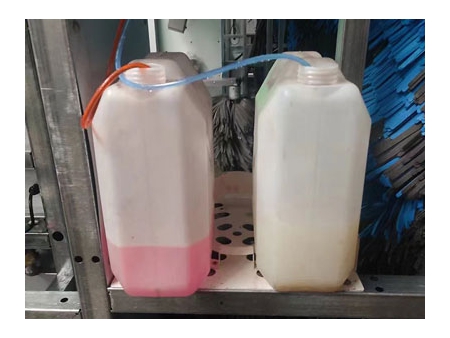

Car shampoo and wax sprinkling
-

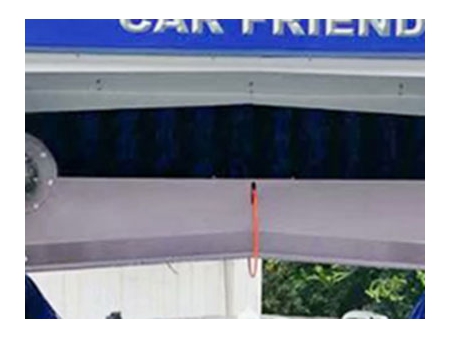

Air dryer – the contour-following drying system dries cars of any shapes
-

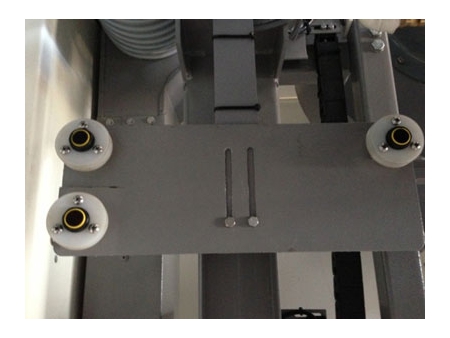

Device equipped to get car exterior information
-

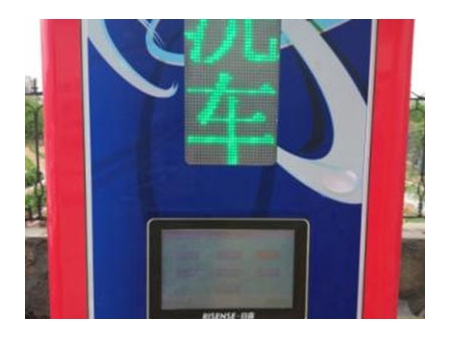

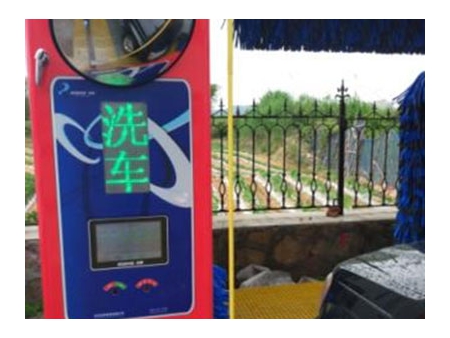

LED screen
-

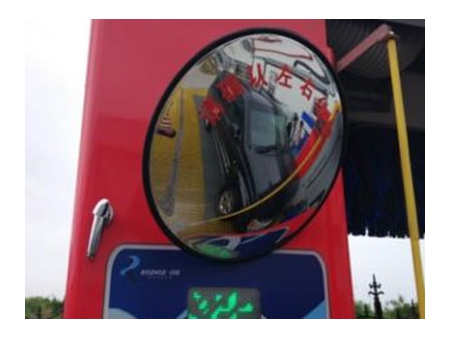

Convex mirror
-

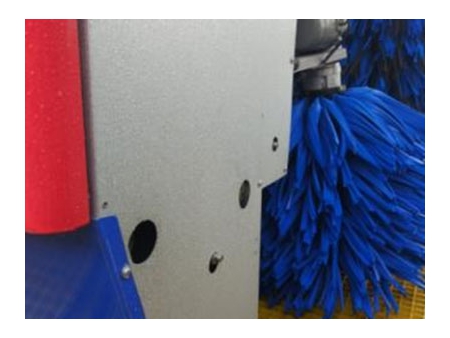

Anti-collision poles
-
Photoelectric sensor
-
4th generation of photoelectric technology
The 4th generation of photoelectric technology helps scan the car and collect the information of car bodies before cars get in the car wash machine. The motion of top brushes is calculated by the PLC system and is thus smooth, steady and free from external interference.

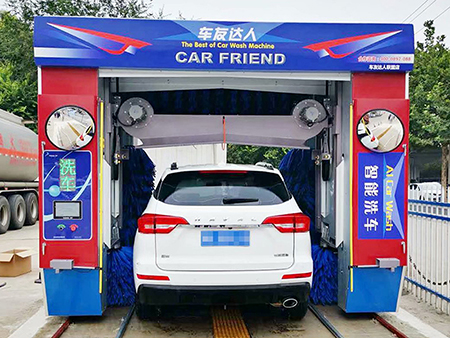

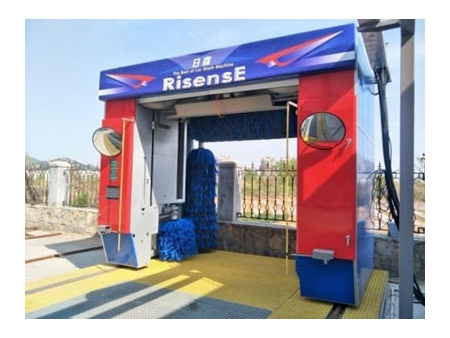

Fully automatic car washing entails safety as a top priority. To guarantee safety, Risense rollover car wash machine CF-360 is equipped with LED screen, convex mirrors, anti-collision poles on both sides and other accessories.
-
Car washing nozzles for wheels
Car washing nozzles are particularly added in the rollover car wash machine to better clean the wheel hubs.
-
Brushes tilting technology
Using the tilting technology, multi-dimensional side brushes will smartly adapt to the car exteriors in the tilted position, which greatly improves the cleaning effect.
When cleaning the rear of SUVs and estate cars, brushes are pivoted forward and backward to match the sloping hatchback, which enables the brushes to clean the recesses.
-

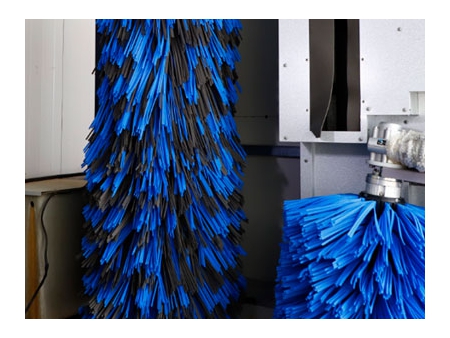

Swallow-tailed sawtooth foam brushes
Side brushes and wheel brushes of Risense’s rollover car wash machine CF-360 are made of 4th generation of swallow-tailed sawtooth foam brushes that feature great capacity to retain water and reduce noise. It is quiet and effective to wash cars, which helps you attract more customers.
-
Smart safety system
The smart safety system of Risense’s rollover car wash machine CF-360 consists of 6 photoelectric censors on the side air outlets and the height limit device on the top air outlets. 3 pairs of photoelectric censors are responsible for collecting cat exterior information while the height limit device responsible for lifting the top air outlets when touching cars. The combination of photoelectric sensors and the height limit device makes car washing much safer.
| Standard Devices | Optional Devices |
| Shampoo spray system | Undercarriage wash system |
| Water wax spray system | Automatic washing mode |
| Side and overhead contour-following drying system | |
| Equipment data intellectualization | |
| Self-diagnose system |
