MEMS 1xN Single Mode Optical Switch
Module (1×256)

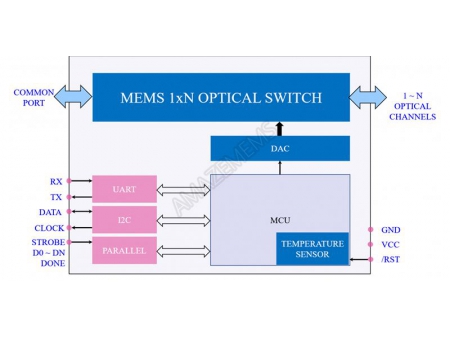

This MEMS 1xN single mode optical switch comes with a modular design, and is offered with port configurations of 1×256. This optical switch, based on Micro-Electro-Mechanical System (MEMS) technology, provides precise channel selection between a single input fiber and up to 256 output fibers. The MEMS mirror rotates to direct the optical light to the desired output fiber, thus enabling seamless transmission, redirection, and blocking of optical signals, making it an indispensable component in modern optical networks.
The MEMS 1xN single mode optical switch is a bi-directional switch that has extensive applications including optical fiber communication and fiber sensing. Amazelink, a specialist in MEMS optical switches, supplies a variety of optical switches that are RoHS compliant and Telcordia GR-1073-CORE approved.
- Compact size
- High reliability and durability
- Fast switching speed
- Telcordia GR-1073-CORE and RoHS compliant
- Optical communication
- Fiber sensing
- Remote fiber monitoring (working with OTDR or OCM)
- Optical network routing
- Measurement resource sharing
- Optical network protection and restoration
| PARAMETER | UNIT | VALUE | |
| Wavelength | nm | 13:1290 ~ 1330 15:1525 ~ 1568 16:1600 ~ 1650 | |
| Test Wavelength | nm | 1310 / 1550 / 1625 or 1650 | |
| Insertion Loss | 1 x 2 | dB | ≤ 0.6, typical 0.5 |
| 1 x 4 / 8 | ≤ 0.8, typical 0.6 | ||
| 1 x 12 / 16 | ≤ 1.0, typical 0.9 | ||
| 1 x 24 / 32 | ≤ 1.3, typical 1.1 | ||
| 1 x 48 / 64 | ≤ 1.5, typical 1.2 | ||
| 1 x 96 / 128 | ≤ 2.0, typical 1.6 | ||
| 1 x 256 / 512 | ≤ 2.3, typical 1.8 | ||
| 1 x 1024 | ≤ 2.5, typical 2.1 | ||
| 1 x 2048 | ≤ 2.8, typical 2.3 | ||
| Return Loss | dB | ≥ 45 | |
| Repeatability | dB | ≤ 0.1 | |
| Crosstalk | dB | ≥ 40 | |
| PDL | 2 < N ≤ 64 | dB | ≤ 0.2 |
| 64 < N ≤ 2048 | ≤ 0.4 | ||
| WDL | 2 < N ≤ 64 | dB | ≤ 0.3 |
| 64 < N ≤ 2048 | ≤ 0.6 | ||
| TDL | 2 ≤ N ≤ 16 | dB | ≤ 0.3 |
| 16 < N ≤ 64 | ≤ 0.4 | ||
| 64 < N ≤ 1024 | ≤ 0.7 | ||
| 1024 < N ≤ 2048 | ≤ 0.8 | ||
| Switch Time | 2 ≤ N ≤ 16 | ms | ≤ 5 |
| 16 < N ≤ 64 | ≤ 10 | ||
| 64 < N ≤ 1024 | ≤ 15 | ||
| 1024 < N ≤ 2048 | ≤ 20 | ||
