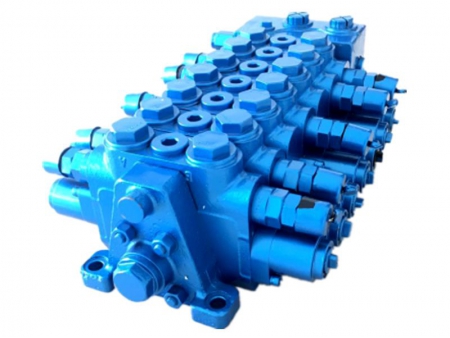

LF12 Sectional Directional Control Valve
Request a Quote
Applications
The directional control valve is used in variable working systems of 6T small excavators and other engineering machinery.
Parameters
| General | |
| Structure | Flange connection |
| Installation position | Arbitrarily |
| Line ports | Threaded connection |
| Nominal Diameter | 12 |
| Hydraulic | |
| Leakage oil flow (at 180 bar, 32 mm2 /s, 50℃) mL/min | 80 |
| Nominal pressure bar | 200 |
| Back pressure bar | 15 |
| Control pressure bar | 30 |
| Control pressure curve | 4～25bar |
| Using guidelines | |
| Recommended fixing | At least 3 locations |
| Flatness of the mounting surface mm | 0.5 |

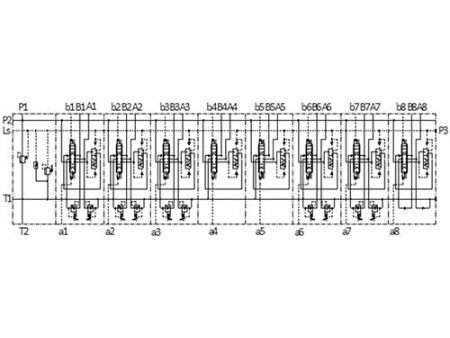

Hydraulic circuit

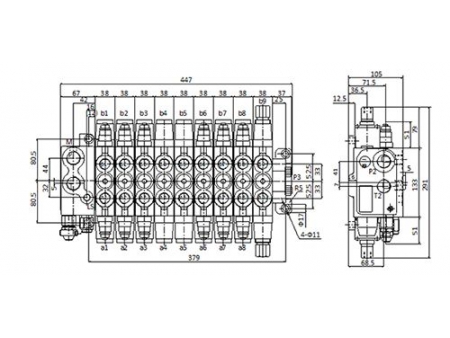

Outside view
Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components
Annual production capacity of 250,000 sets of hydraulic components
Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
