12T Boom Truck, SST12S5

Request a Quote

View All: http://heavy-crane.com/1-3-9-12t-boom-truck-sst12s5.html

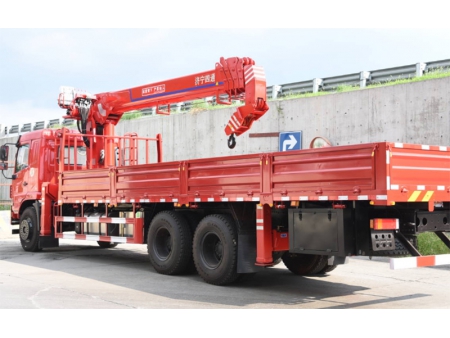

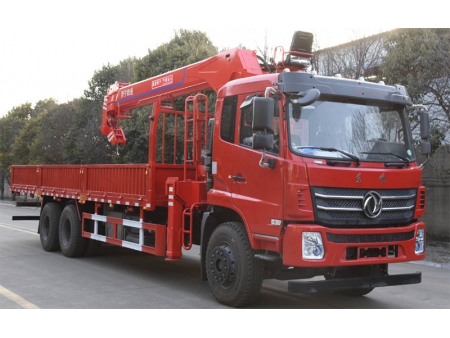

Our SST12S5 12-ton boom truck uses Dongfeng truck chassis and Yuchai 180HP engine. The 5-section telescopic boom features U-shaped cross section and a horizontal supporting cable, the maximum lifting height can reach 19m. The boom truck can lift and move heavy materials in construction sites.

Features

The telescopic boom features U-shaped cross section, providing a greater resistance to load-induced deflection;
Equipped with over-winding protection system to avoid safety hazards caused by breakage of wire rope;
Adopting integrated slewing mechanism;
Four hydraulic stabilizer legs ensure high stability and versatility for lifting operation;
Fitted with load-sensing hydraulic system, providing good adaptability and high working efficiency;
Compact structure, less installation space and superior look;

Specifications

Max. loading capacity: 12000kg

Max. lifting height: 19m

Outrigger span: 5.8m

Boom: 5 sections (5.3m per section)

Main boom length: 5.4m-16.5m

Max. lifting moment: 30t.m

Boom raising angle: 0-75°

Slewing angle: 360°

Slewing speed: 2.5r/min
