High Flow Filter Cartridge, PHFL Series Manufacturer

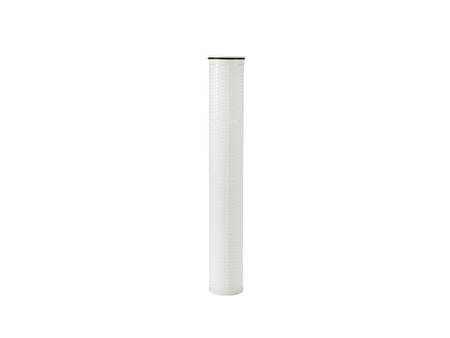

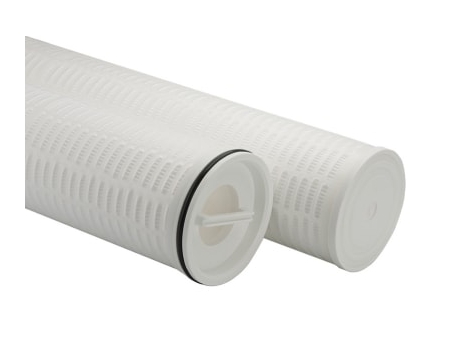

High Flow Filter Cartridge, PHFL Series

Request a Quote

View All: http://filtrationcartridge.com/1-3-high-flow-filter-cartridge.html

Designed for applications requiring high flow rates, this filter cartridge can handle an impressive 110 cubic meters of fluid per hour. The high throughput capability allows for reduced cartridge usage and minimizes filtration equipment size, ultimately leading to cost savings.

This series of filter cartridges comes in polypropylene, glass fiber, and polyester materials, offering versatility for a wide range of fluid filtration conditions. They feature a wide range of micron ratings from 1 to 100 microns, available in 40" and 60" sizes, and come with a lifting handle design for easy installation.

Materials of Construction

Model	Filter Medium	Support/Drainage	End Cap	O-ring
PP filter cartridge	Pleated polypropylene depth structure	Polypropylene	Polypropylene	Nitrile rubber (NBR) Ethylene-propylene rubber (EPR) Fluoro rubber (FPM/FKM) Silicon
PP filter cartridge	Melt-blown Polypropylene		Polypropylene
GF filter cartridge	Resin bonded glass fiber/polyester	Polyester	Polypropylene

Specifications

Outside Diameter	6"(152.4mm)
Inside Diameter	80mm
Length	20"，40"，60"
Micron Rating	0.5μm, 1μm, 5μm, 10μm, 15μm, 20μm, 40μm, 70μm
Max. Operating Temperature	Pleated/melt-blown polypropylene (PP): 82℃
Max. Operating Temperature	Pleated glass fiber (GF): 121℃
Max. differential pressure (inside to outside flow)	Pleated/melt-blown polypropylene (PP): 3.44bar@82℃
Max. differential pressure (inside to outside flow)	Pleated glass fiber (GF): 3.44bar@121℃
Change-out differential pressure	Recommended change-out differential pressure: 1.5Bar@20℃
Change-out differential pressure	Max. change-out differential pressure: 2.5Bar@20℃
Max. flow rate	40'' filter cartridge: 70m³/h
Max. flow rate	60'' filter cartridge: 110m³/h

Applications

Prefiltration for reverse osmosis systems, pretreatment for seawater desalination, and purification of various process water.
Filtration of power plant condensate water, filtration for power plant hot water.
Filtration for bottled water, high fructose, edible oil, soft drinks, and milk.
Filtration in the petrochemical industry for oil refineries, paint, diesel dyes, and other processing applications.
Filtration in the biopharmaceutical industry for raw materials, solvents, and water.
Microelectronics factory wastewater filtration.
