Specialty Heat Shrink Tubing, RS-(2X)PET
Model: RS-(2X)PET

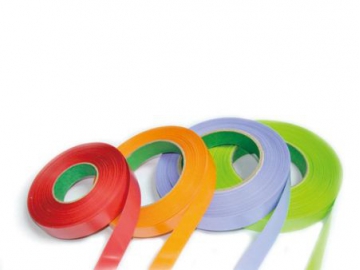

Halogen free PET heat shrinkable tubing

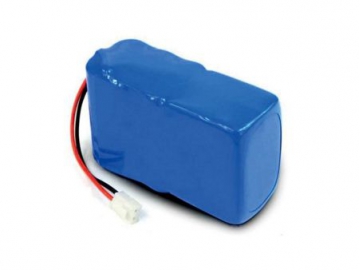

RS-(2X)PET halogen free PET heat shrinkable tubing is compliant with RoHS, REACH and SONY GP standards, it is used to cover and protect electronic components such as electrolytic capacitors, inductance, high-end rechargeable batteries, toys and medical equipment.
Features
- Material: modified polyester
- Shrink ratio: 2:1
- RoHS 2.0, REACH and SONY GP compliant
- Cd/Pb/Hg/Cr/PBBs/PBBEs/PBDEs/PCB/PCT/PCN and other Class I prohibited substances excluded, ideal replacement for PVC heat shrinkable tubing
- Common color: black (other colors are available upon specific need)
| Items | Specifications |
| Operating temperature range -40~ 125℃ | -40~ 125℃ |
| Bending (280mm) | ≤3mm for size under Ø8, ≤3.5mm for size over Ø10 |
| Breaking strength | ≥25MPa |
| Elongation at break | ≥50% |
| Specific gravity | 1.2-1.5g/mm3 |
| Water absorption | ≤2% |
| Surface resistance | ≥1.0×109 Ω.cm |
| Volume resistance | ≥1.0×1014 Ω.cm |
| Voltage level | 600V |
| Dielectric strength | >10kV/mm |
| Size | Flat Width (mm) | Thickness (mm) | Radial Shrink Ratio (%) | Longitudinal Shrink Ratio (%) |
| Ø3.0 | 5.5±0.2 | 0.08±0.02 | 48±4 | 8±3 |
| Ø4.0 | 7.1±0.2 | 0.08±0.02 | 48±4 | 8±3 |
| Ø5.0 | 9.0±0.2 | 0.08±0.02 | 48±4 | 8±3 |
| Ø6.0 | 10.5±0.2 | 0.08±0.02 | 48±4 | 8±3 |
| Ø6.3 | 11.0±0.2 | 0.08±0.02 | 48±4 | 8±3 |
| Ø8.0 | 14.0±0.2 | 0.10±0.02 | 48±4 | 8±3 |
| Ø9.0 | 15.7±0.2 | 0.10±0.02 | 48±4 | 8±3 |
| Ø10.0 | 17.0±0.2 | 0.10±0.02 | 48±4 | 8±3 |
| Ø12.0 | 20.3±0.2 | 0.10±0.02 | 48±4 | 8±3 |
| Ø12.5 | 21.3±0.3 | 0.10±0.02 | 48±4 | 8±3 |
| Ø13.0 | 21.7±0.3 | 0.10±0.02 | 48±4 | 8±3 |
| Ø13.5 | 22.5±0.3 | 0.10±0.02 | 48±4 | 8±3 |
| Ø14.5 | 24.2±0.3 | 0.10±0.02 | 48±4 | 8±3 |
| Ø16.0 | 26.7±0.3 | 0.11±0.02 | 48±4 | 8±3 |
| Ø18.0 | 29.8±0.3 | 0.11±0.02 | 45±4 | 8±3 |
| Ø19.0 | 31.4±0.2 | 0.11±0.02 | 45±4 | 8±3 |
| Ø20.0 | 32.9±0.3 | 0.11±0.02 | 45±4 | 8±3 |
| Ø22.0 | 36.2±0.3 | 0.11±0.02 | 45±4 | 8±3 |
| Ø25.0 | 41.1±0.5 | 0.11±0.02 | 45±4 | 8±3 |
| Ø30.0 | 49.1±0.5 | 0.12±0.03 | 45±4 | 8±3 |
| Ø35.0 | 56.7±0.5 | 0.12±0.03 | 45±4 | 8±3 |
| Ø40.0 | 65.0±0.5 | 0.12±0.03 | 45±5 | 12±3 |
| Ø42.0 | 68.0±0.5 | 0.12±0.03 | 45±5 | 12±3 |
| Ø45.0 | 72.0±0.5 | 0.12±0.03 | 45±5 | 12±3 |
| Ø48.0 | 77.6±0.5 | 0.12±0.03 | 45±5 | 12±3 |
| Ø50.0 | 84.0±1.5 | 0.12±0.03 | 45±5 | 12±3 |
| Ø52.0 | 88.5±1.5 | 0.12±0.03 | 45±5 | 12±3 |
| Ø60.0 | 96.1±1.5 | 0.12±0.03 | 45±5 | 12±3 |
| Ø63.5 | 106.5±1.5 | 0.12±0.03 | 45±5 | 12±3 |
