Specialty Heat Shrink Tubing, HSS63
Model: HSS63

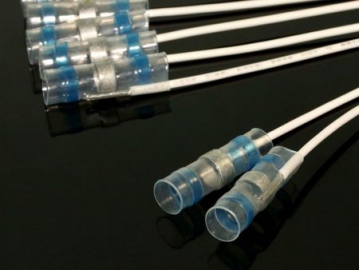

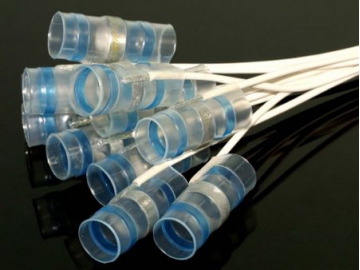

Heat shrinkable tube with tin ring
HSS63 heat shrinkable tube with tin ring is suitable for handling shielded wire terminals and splices, providing connection protection with simple and easy installation.
Features
- 2:1 shrink ratio
- Flame retardant
- Excellent resistance to abrasion and chemical corrosion
- Transparent tube offers optimal clarity for visual inspection
- Welding robustness: ≥100N
Operating Temperature Range
- Continuous operating temperature: -55℃~150℃
- Shrink temperature: started at 140˚C, full recovery at 170˚C
| Order Code | Heat Shrink Tube (mm) | Hot Melt Rubber Ring (mm) | Tin Ring (mm) | Shielding wire (mm) | Color | |||
| Internal Diameter (ØC) | Internal Diameter (ØB) | Length (A) | Spacing (H) | Width | A.W.G | Length | ||
| HSS63-1-55-22-90 | ≥2.60 | ≥1.90 | 17.0±0.5 | 9.00±0.2 | 3.0±0.1 | 22 | 165±5 | Blue |
| HSS63-2-55-22-90 | ≥3.20 | ≥2.60 | 17.0±0.5 | 9.00±0.2 | 3.0±0.1 | 22 | 165±5 | Blue |
| HSS63-3-55-22-90 | ≥4.30 | ≥5.10 | 17.0±0.5 | 9.00±0.2 | 3.0±0.1 | 22 | 165±5 | Blue |
| HSS63-4-55-22-90 | ≥6.50 | ≥6.0 | 19.0±0.5 | 9.00±0.2 | 3.0±0.1 | 22 | 165±5 | Blue |
| HSS63-5-55-22-90 | ≥7.60 | ≥7.0 | 19.0±0.5 | 9.00±0.2 | 3.0±0.1 | 22 | 165±5 | Blue |
