AS-S03 Front and Back Labeling Machine

Request a Quote

View All: http://labelingsolution.com/1-6-as-s03-front-and-back-labelling-machine.html

The front and back labeling machine is designed to simultaneously apply labels upon the front and back sides of flat bottles, round bottles, and square bottles. It delivers outstanding efficiency with a maximum production speed is 200 pcs/min.

Applications

Applicable labels: self-adhesive label, self-adhesive film, electronic supervision code, bar code, etc.
Applicable products: products with flat surfaces, large curved surfaces, round surfaces, etc.
Applicable industries: pharmaceutical, cosmetics, electronics, hardware, plastic, etc.

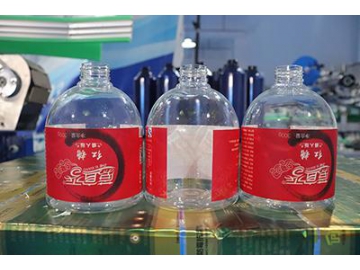

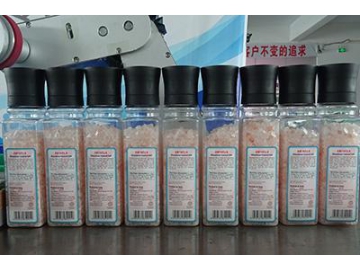

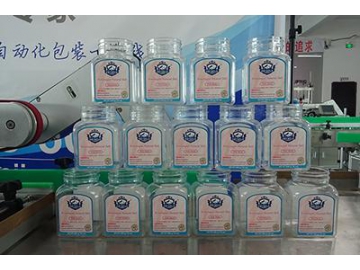

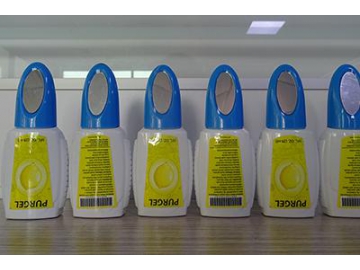

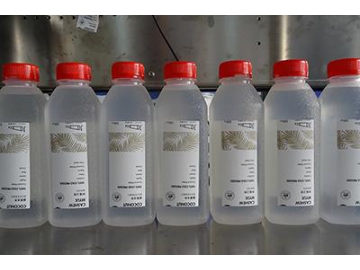

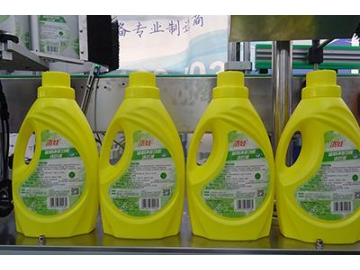

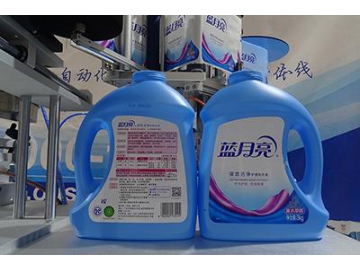

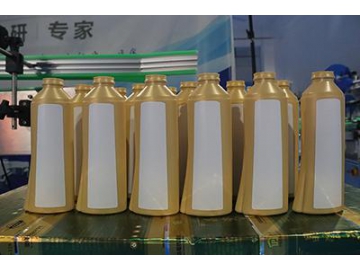

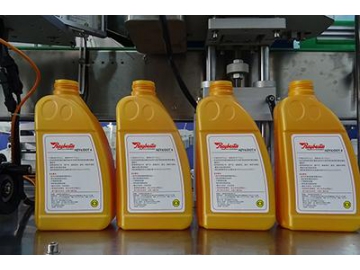

Samples

Specification

Model	AS- S03
Label stop accuracy	±1mm
Production speed	30-200 pcs/min
Product diameter	φ20mm～φ250mm
Product width	30mm～90mm
Product height	60mm～280mm
Label length	20mm～200mm
Label roll inside diameter	Φ76mm
Label roll outside diameter	Φ280mm
Dimensions (length x width x height)	2800mm x 1450mm x 1600mm
Weight	400Kg

Details of Automatic Double-Side Labeling System

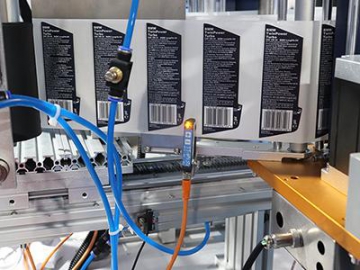

Photoelectric sensor:
The labeling machine is equipped with a photoelectric sensor made by Sick which features high precision and high reliability.

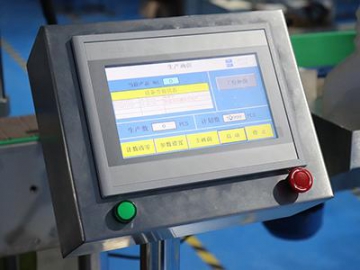

Touch screen:
Controlled by PLC, the interface is convenient to use. With just a tap of its touch screen, you can easily access various functions and parameters for your product needs.
Guide mechanism:
It adjusts the positions of workpieces of various sizes using joints and bars.

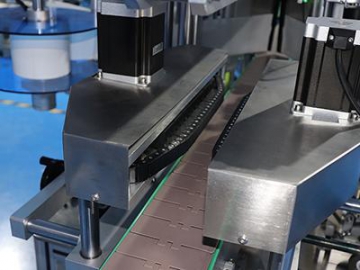

Bottle dividing mechanism:

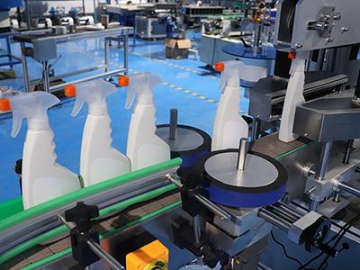

It controls the speed of the motor to form appropriate gaps among the bottles to ensure each bottle has sufficient time to be labelled.
Label adjusting mechanism:
Label position, height, and angle can be adjusted by the label adjusting mechanism. It enables the label to be applied to different shapes of bottles with high accuracy.
