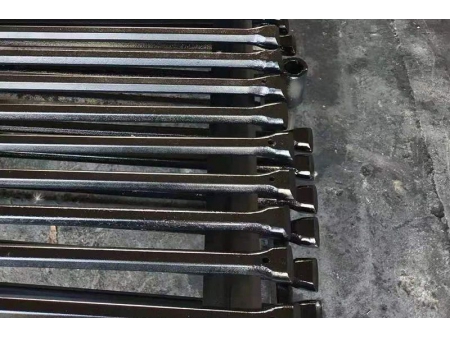

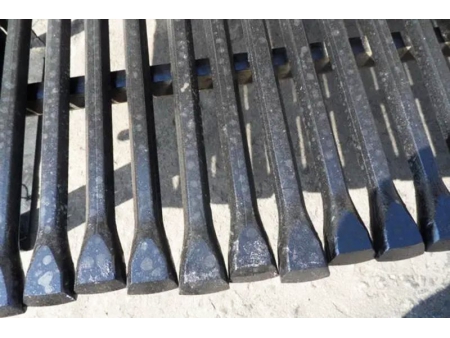

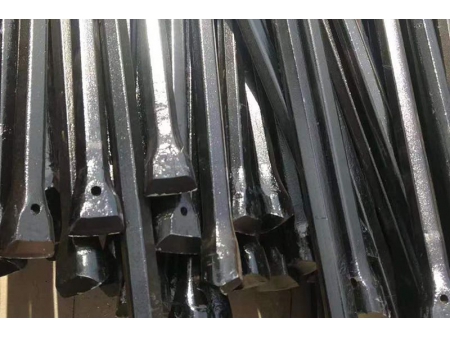

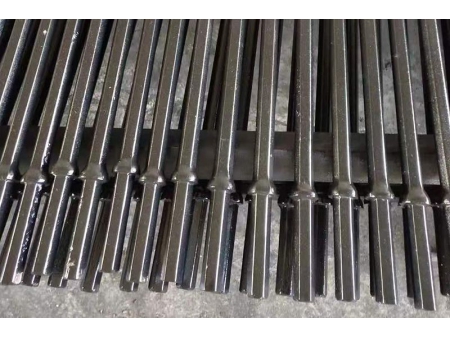

Integral Drill Steel
Top hammer drilling
Discover the power and versatility of our integral drill steel, a reliable drilling solution designed for various industries, including mining, tunneling, water management, and construction. Crafted from a single piece of premium metal, the integral drill steel comprises a drill bit and a drill rod, combining strength and efficiency for superior drilling performance.
We utilize top-grade hexagonal steel to ensure exceptional strength and durability, enabling prolonged and efficient drilling performance. Our integral drill steel features a precision-cut structure, optimizing drilling efficiency and ensuring seamless penetration into the targeted formations. To prevent rod jamming during drilling, our integral drill steel is intelligently designed with a tapered diameter that decreases as the length increases.
Our integral drill steel finds wide application in the field of small-hole drilling (23-45mm) across various industries. Whether it's quarrying, construction, tunneling projects, underground mining, road construction, or trench excavation, our integral drill steel is the solution to empower your drilling operations.
| Shank size | Length (mm) | Diameter (mm) (customizable) |
Hex 19×108mm | 400-4000 | 23-35 |
Hex 22×108mm | 400-9600 | 26-41 |
Hex 25×108mm | 600-6400 | 33-45 |
Hex 32×108mm | 800-6400 | 35-42 |
