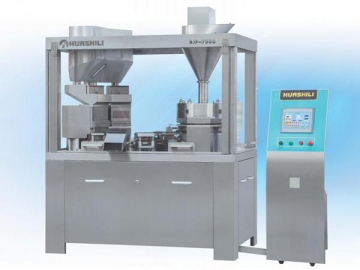

Capsule Filling Machine, Type NJP-1200, 1000, 900
The NJP-1200,1000,900 precise dosing automatic capsule filling machine is equipped with a precision drug feeding mechanism, which can feed drugs automatically. The assembly mold is easy to disassemble and wash, and the adjustment after installation is very easy.
- Full closed workstation turntable
- Fast capsule feeding, correct and well-organized feeding direction adjustment
- Dosage fine adjustment without stopping the machine
| Machine Model | NJP-1200 | NJP-1000 | NJP-900 |
| Max Output | 72000capsule/h | 60000capsule/h | 54000capsule/h |
| Suit for Capsule Size | 00#-5#and secure capsule A-E | 00#-5#and secure capsule A-E | 00#-5#and secure capsule A-E |
| No. of Mold Bores | 9 | 8 | 7 |

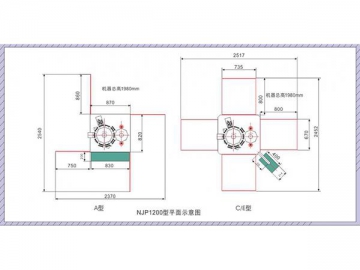

| Machine Dimensions (including the electric control cabinet in C/E type) | 1180×1340×1980mm | 1180×1340×1980mm | 1180×1340×1980mm |
| Net Weight | 1000kg | 1000kg | 1000kg |
| Power | 380/220V 50/60Hz 7kw | 380/220V 50/60Hz 7kw | 380/220V 50/60Hz 7kw |
| Noise | < 75dB | < 75dB | < 75dB |

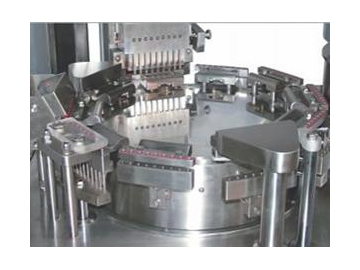

- The capsule filling machine's mold is easy to disassemble and wash, the cleaning process takes only 20 minutes, and the mold assembling accuracy is easy to adjust.
- The dose adjustment mechanism of this filling machine adopts precise bracket adjusting technology. It can realize the fine dose adjustment without stopping the machine operation.
- We adopt a cam for the workstation operation, which has great lubricating properties. It decreases the wear degree and extends the service life of the capsule transmission units.
- Microcomputer control technology, which is advanced and safe, so it increases the automation level of the production process.

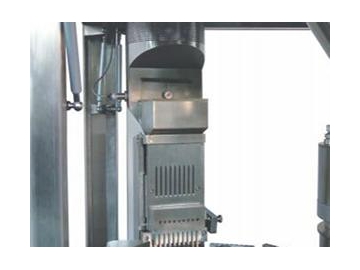

- This capsule filling machine is equipped with a drug feeding mechanism, so it can feed drugs automatically. Which makes the drugs in the storage hooper always maintain a certain height and ensures the accuracy of the dose.
- This capsule filling machine adopts an SEW motor and Siemens electrical components and bearings, which makes the control and transmission mechanism more stable.
- During the feeding process, there is no blind angle for the two sides of each set of die holes of the measuring disk in the machine. It greatly improves the accuracy of the dosage.
WISELY offers a wide range of pharmaceutical machinery like capsule filling machines, tablet polishers, and pharma packaging machines. The company was founded in 1992 and is a member of the China Association for Pharmaceutical Equipment. We participate in continuous development and have many patents for technologies used in our capsule fillers. We provide customers with high quality pharmaceutical and medical equipment all over the world.
