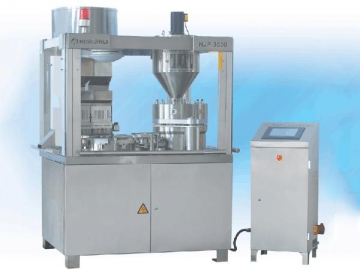

Capsule Filling Machine Type NJP-3500, 3300
The WISELY NJP-3500,3300 LCD screen control automatic capsule filling machine features a stable control and transmission mechanism. It can automatically alert operators in case of error.
- Dual air supply technology
- Ultra-low workstation turntable
- Wrought grooved cams replace the springs
| Machine Model | NJP-3500 | NJP-3300 |
| Max Output | 200000capsule/h | 180000capsule/h |
| Suit for Capsule Size | 00#-5#and secure capsule A-E | 00#-5#and secure capsule A-E |
| No. of Mold Bores | 26 | 24 |

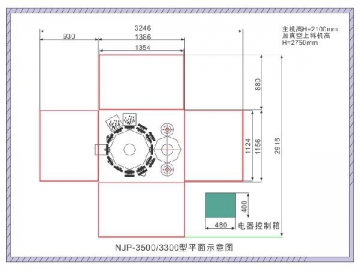

| Machine Dimensions (excluding the electric control cabinet) | 1386×1156×2100mm | 1386×1156×2100mm |
| Net Weight | 2500kg | 2500kg |
| Power | 380/220V 50/60Hz 13kw | 380/220V 50/60Hz 13kw |
| Noise | < 75dB | < 75dB |
- The capsule filling machine features wrought grooved cams in its transmission mechanism instead of springs, so this capsule filling machine has longer service life.

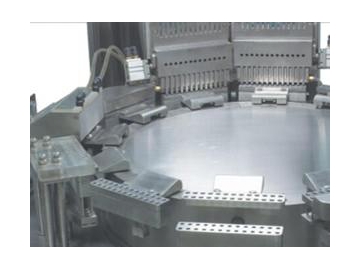

- Fully closed workstation turntable is equipped with an automatic lubrication device, which can reduce the frequency of machine maintenance.
- It adopts a 10.4-inch colorful LCD display screen. The device can automatically alarm or stop operating in case of capsule shortage, powder shortage, vacuum malfunction, dust absorption fault and in the case of a loose machine door
- SEW motor and Schneider electrical components. It has bearings and a high-precision intermittent indexing box, and the distance between its input shaft and output shaft increase from 83mm to 145mm, which increases the performance of the controlmechanism and transmission mechanism more stable.
- There are twelve steps in its capsule feeding mechanism, which can finish the filling process of medicine powders and pellets. During the indexing box's orbiting process, the angular velocity of the angle change from 36° to 30°, so the operation is more stable.
- The capsulefilling machine and the motor are set separately. This makes the equipment safer and easier to clean. The operator can quickly finish cleaning and mold replacement during the cleaning process.
WISELY offers a wide range of pharmaceutical machinery like capsule filling machines, tablet polishers, and pharma packaging machines. The company was founded in 1992 and is a member of the China Association for Pharmaceutical Equipment. We participate in continuous development and have many patents for technologies used in our capsule fillers. We provide customers with high quality pharmaceutical and medical equipment all over the world.
