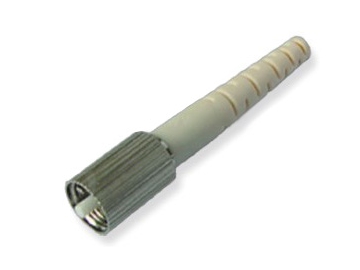

Waterproof Connector
Request a Quote
Applications
Specification- Outdoor environment of optical fiber communication
- Outdoor communication equipment connection
- Optical fiber base station connection
- Field optical communication link temporary fast connection
- Broadband
- CATV
- FTTP
- Cost effective solution for in house termination
- Water proof, dust proof and corrosion resistant
- Wide range of operational temperature
- Wide range of cables to be used,3-8mm OD cable with two 2.0mm to 3.0mm jacketed subunits
- Multimode and single mode
- Intermate able to other Industrial adaptor per IEC 61076-3-106·Simple assembly requiring no special tools
- Durable mechanical mating, minimum of 500 mating
| Parameter | FuLLAXS-LC | Optitap-SC | MINI-SC | ODVA-SC | ODVA-LC | ODVA-MPO | ODVA-MPOLow loss | PDLC | ||||||||
| SM | MM | SM | MM | SM | MM | SM | MM | SM | MM | SM | MM | SM | MM | SM | MM | |
| Insertion Loss(dB) | 0 | 0 | 0.2 | 0 | 0 | 0 | 0 | 0 | 0 | 0.2 | 1 | 1 | 0 | 0.4 | 0 | 0 |
| Insertion Loss(dB) | 50 | / | 50 | / | 50 | / | 50 | / | 50 | / | 60 | 25 | 60 | 25 | 50 | / |
| Cable outer Diameter(mm) | 4.8 or 7.0 | 3 or 5 | 3 or 5 | 3~8 | 3~8 | 3~8 | 3~8 | 3~7 | ||||||||
| IP Rating | IP67 | IP67 | IP67 | IP68 | IP68 | IP68 | IP68 | IP67 | ||||||||
| Durability | <0.2dB typical change 500 matings | |||||||||||||||
| Operating Temperature | -40°C to 70°C | |||||||||||||||
