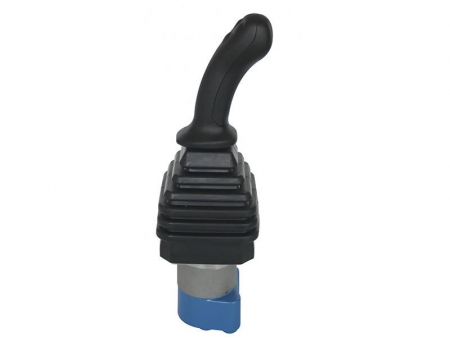

4TH6U06A Hydraulic Pilot Control Valve

4TH6U06A  Hydraulic Pilot Control Valve
4TH6U06A  Hydraulic Pilot Control Valve
Request a Quote
  • Pilot control valve is small and compact designed, simplifying installation.
  • All ports are in parallel, thus simple to install.
  • Single lever, dual axis control.
  • Low actuating force, good operation comfort.
  • Pilot operated control valve uses reliable mechanical positioning.
  • Wide range of control curve characteristics, reliable proportional flow control.
  • Control valve features low hysteresis and quick response to pressure changes.
  • Hydraulic valve is dust proof and has high durability.
  • Pressure characteristic curves can be customized to suit different types of directional control valves.
Applications
  • Loader
  • Bulldozer
  • Hoisting machinery
  • Agricultural machinery
  • Material handling machinery
  • Compactor
  • Forestry machinery
  • Container crane
Parameters
Pilot pressure (MPa) Maximum 5
Control flow (L/min) Maximum 16
Return pressure (MPa) Maximum 0.3
Hydraulic oil Mineral oil (HL, HLP) in accordance with DIN 51 524
Fluid temperature range (℃) -20℃-80℃
Viscosity range (mm2/s) 10-380
Fluid cleanliness Not lower than NAS 1638 level 9
Weight (kg) 3.6
