Aluminum/PET Shielding Tape
Request a Quote
Polyester film laminated aluminum foil with PUR hot melt adhesive
- Total Thickness: (From 10μm to over 100μm) ±3μm
- PET Layer Thickness: (≥1.6μm) Aluminum Layer (≥4μm)
- Tensile Strength: ≥30Mpa
- Width: 0.5mm to 990mm
- Elongation: ≥30% Min
- Heat Seal Strength: 3.5KG
- Packaging: rolls(D30), sheet form, 76mm removable rolls, inverted cone packaging
Can be customized to include heat-sealability per customer requirements.

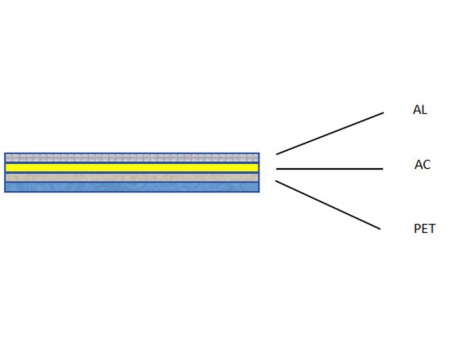

StructurePolyester film laminated aluminum foil is available in various colors and can be produced in different sizes according to your requirements. We manufacture double-sided laminated aluminum foil, three-layer laminated aluminum foil, five-layer laminated aluminum foil, creating a complete moisture barrier to prevent moisture, dust, and dirt from entering the insulation layer. Additionally, we can provide foil film laminates without adhesive layers to meet your specific needs.
Features
- PET, as the base layer, provides insulation and isolation properties
- Aluminum foil backing offers excellent shielding and is easy to convert (cut and die-cut)
- Polyurethane adhesive demonstrates strong heat resistance, oxidation resistance, solvent resistance, and oil resistance
- Removable release liner allows for easy handling and die-cutting of intricate shapes
- Available in standard and custom roll widths and lengths to meet various application requirements
Applications
- EMI shielding
- Data transmission cable
