Electric Minibus 4.4 Meters
Combination of comfort and flexibility
This 7 seater electric minibus is suitable for trips, tax services, and special needs.
The seats and equipment of this passenger minibus can be easily transformed. With the rear seats being detachable, this electric minibus is available in 5 or 7 passenger version. What’s more, the 2,605mm wheelbase provides a large space where passengers can stretch out and relax with the perfect position they want. That’s why this transit passenger van is highly popular among taxi drivers.
Compared with the counterparts, this electric minibus provides more comfort and functionality. The effective heating and cooling equipment, the luxurious exterior and interior finishing elements, comfortable seats, and the audio and video equipment provide you an enjoyable ride.
Offer all the benefits and none of the downsides. The classic tailgate makes seat transformation more convenient. The chassis suspension and the rotary gear shift make your driving more flexible and convenient.
This electric vehicle comes with left-hand drive and right-hand drive versions.
| Main Parameters | Vehicle Dimensions (L*W*H) (mm) | 4,495*1,680*1,920 mm |
| Wheel Base (mm) | 2,935 | |
| Curb Weight/Total Mass (kg) | 1,440/2,550 | |
| Payload Capacity (kg) | 1,110 | |
| NO. of Seats | 1,110 | |
| Approach / Departure Angle (°) | 28/24 | |
| Front / Rear Suspension (mm) | 685 / 875 | |
| Front / Rear Tracks (mm) | 1,425 / 1,435 | |
| Steering Location | Left Hand Drive | |
| Dynamic Performance | Max. Speed (km/h) | 100 km/h |
| Climbing Capacity (%) | 20% | |
| Battery Capacity (kWh) | CATL-41.86 kWh | |
| Peak Torque (kW/Nm) | Nanjing Golden-60/220 | |
| Driving Range (km) | 300 km | |
| Chassis Steering systems | Drive Mode | Middle-engine Rear-drive |
| Front Suspension | MacPherson Independent Front Suspension | |
| Rear Suspension | Vertical 5 plate spring type | |
| Steering Type | EPS Electronic Power Steering | |
| Wheels Brake System | Tire Size | 175/70 R14C |
| Wheel Material / Tire | Steel / 4 pcs | |
| Brake Type | Front Disc/ Rear Drum | |
| Parking Brake | Ratcheting Zip Type | |
| Body Structure | Body Structure | Load-supporting |
| NO. of Doors | 5Pcs, Sliding door on both side | |
| NO. of Seats | 7 Seats |
| Remark：● Standard, ○ Optional | ||
| Charging Configuration | Fast Charger Compliant with Euro Standards | ● |
| Euro-Standard 7 kW AC Slow Charger | ○ | |
| Safety Device | Pedestrian Reminder | ● |
| Driver’s Seat Belt Reminder | ● | |
| ABS Anti-lock Braking System | ● | |
| Three-point Safety Belts | ● | |
| Controllability | Reverse Radar | ● |
| Wheel-Slip Control | ● | |
| External Configuration | Daytime Running Lamps | ○ |
| Headlamp Height Adjustable | ● | |
| White Painting | ● | |
| Front and Rear Bumper | ● | |
| Remote Control Key, Central lock | ● | |
| Internal Configuration | Front Door Electric Window | ● |
| Driver and Co-pilot Sunshield | ● | |
| Normal Flooring | ● | |
| Normal Ceiling | ● | |
| Fabric Seat with High Foam Sponge | ● | |
| Enclosed Steel Plate Partition | ● | |
| Multimedia Configuration | Radio USB | ● |
| NO. of Speaker | 2 | |
| AC | Air Conditioner (for cooling) | ● |
| PTC Heater | ● | |
| Safety Equipment | Reflective Vest | ● |
| Warning Triangle | ● | |
-

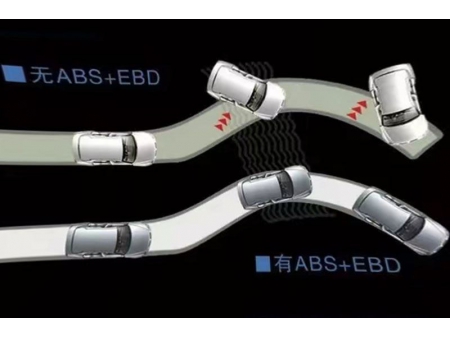

Equipped with ABS EBD system, increasing the vehicle safety.
-
Optional driving modes of D/S (Drive/Sport) according to road conditions.
-
Adopted with the dual-circuit hydraulic braking system that ensures the vehicle’s stable performance.
-
Equipped with EPS (Electric Power Steering) that provides a better driving experience.
-
Side sliding door makes the pick-up and drop-off of passengers more convenient.
-
All the rear seats are foldable and removable, suitable for transporting both passengers and cargoes.
