Aluminum/PTFE Shielding Tape

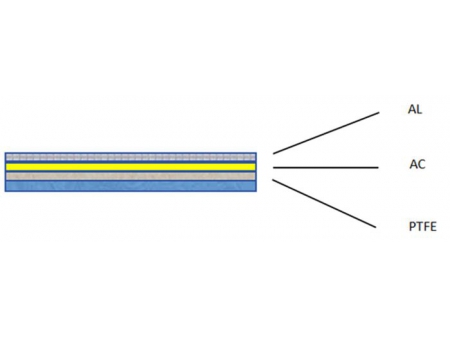

Polytetrafluoroethylene film laminated aluminum foil
- Total Thickness: (55μm to over 200μm) ±5μm
- PTFE Layer Thickness: (≥50μm) Aluminum Layer (≥0.5μm)
- Tensile Strength: ≥30Mpa
- Width: 0.5mm to 140mm
- Elongation: ≥30% Min
- Packaging: rolls(D30), sheets, 76mm removable rolls, inverted cone packaging
Aluminum/PTFE shielding tape is known for its shielding, high elongation, and airtight properties, making it ideal for the wire and cable winding industry. It boasts excellent dielectric performance, enabling its use on uneven surfaces. This polymer compound, derived from polytetrafluoroethylene, offers outstanding chemical stability, corrosion resistance, sealing properties, high lubricity, electrical insulation, and good resistance to aging.
- Ease of Coating
- Flame retardant, radiation resistance, and thermal insulation.
- High-temperature insulation
- High adhesion strength and dielectric strength
- Outstanding voltage resistance and tensile strength
- Perfect balance of electrical, chemical, and physical properties
Our PTFE tapes have found favor with many commercial and industrial applications, because they are great insulated tapes for high temperature and high dielectric applications. In addition, these PTFE insulated tapes have extremely low friction and non-sticking properties, making them suitable for a wide range of mechanical applications.
- Thin and heat-resistant parts for fastening and electrical insulation
- Used in TAB bonding (tape automatic bonding), heat-resistant films, etc
- Flame retardant materials
- Thermal insulation materials
- Data transmission cable
- EMI shielding
