MIG/MAG Welder with Melting Electrode
Request a Quote
The MIG/MAG welder with melting electrode is our latest single phase input tap welding machine, also called CO2 gas shielded welding machine. The design and manufacture adhere to our strict standards as usual. This model enjoys excellent workmanship and the most favorable price. It is a very cost-effective choice for customers.
The series includes four types: NB (KR)-250, NB (KR)-350, NB (KR)-500, and NB (KR)-630. They have different welding output but all achieve high quality welding effects. The performance distinguished them to be an ideal choice for automobile body welding, sheet metal welding, and workshop maintenance.
NB(KR)-350
| Model | |
| Power Voltage/Frequency | 380V/50Hz |
| Phase Number | 3 |
| Open Circuit Voltage | 52V |
| Rated Input Capacity | 18KVA |
| Load Voltage | 17~31.5V |
| Output Current | 60~350A |
| Rated Duty Cycle | 60% |
| Weight | 130kg |
| Dimensions | 680×408×756(mm) |

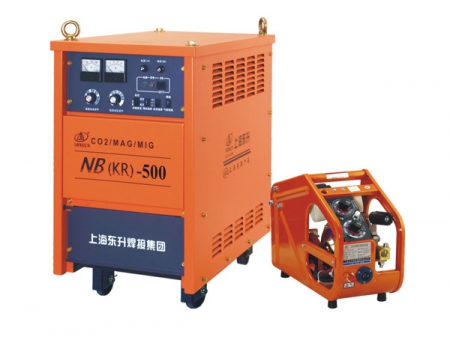

NB(KR)-500
| Model | |
| Power Voltage/Frequency | 380V/50Hz |
| Phase Number | 3 |
| Open Circuit Voltage | 66V |
| Rated Input Capacity | 31.9KVA |
| Load Voltage | 17~39V |
| Output Current | 60~500A |
| Rated Duty Cycle | 60% |
| Weight | 190kg |
| Dimensions | 710×436×814(mm) |

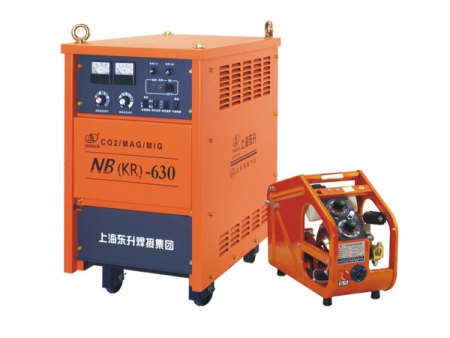

NB(KR)-630
| Model | |
| Power Voltage/Frequency | 380V/50Hz |
| Phase Number | 3 |
| Open Circuit Voltage | 73V |
| Rated Input Capacity | 43.5KVA |
| Load Voltage | 19~44V |
| Output Current | 100~630A |
| Rated Duty Cycle | 60% |
| Weight | 229kg |
| Dimensions | 660×530×978(mm) |
Features
- The semi-automatic MIG/MAG welder with melting electrode is thyristor module controlled.
- This machine is suitable for the welding of low-carbon steel, low alloy steel, stainless steel, aluminum, and aluminum alloy. (When used as aluminum welding machine, it uses flux-cored wire and is supported by double drive wire feeder).
- It is suitable for solid-core or flux-cored wire gas shielded welding.
- This welding equipment has simple, unitary switching mechanism with adjustable current and voltage.
- It is suitable for CO2, MIG, and MAG gas shielded welding.
- SCR adjustment of wire feed speed ensures the smooth and reliable wire feeding during the welding process.
- The MIG/MAG welder has excellent output characteristics. Even with disturbed arc length, it still makes a continuous and stable welding process.
