Rotary BOP (Blowout Preventer)
Request a Quote
- FX18-7/10.5
- FX28-5/10
- FX35-10.5/21

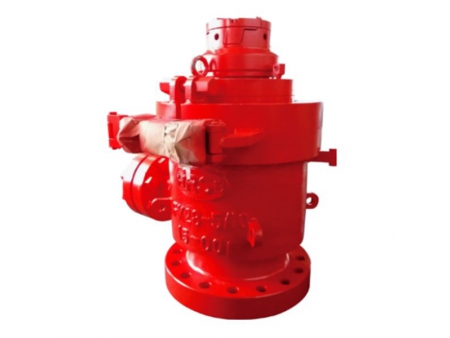

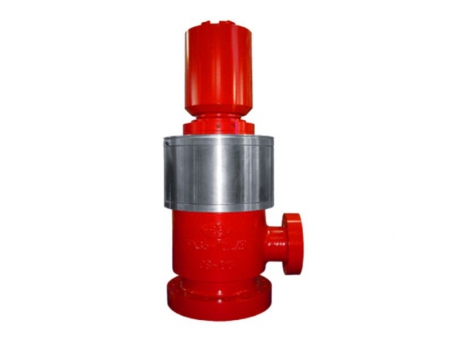

A rotary BOP is a well control device usually applied in underbalanced drilling wells. The rotary blowout preventer is made up of the body, the clamping cylinder assembly, the rotating assembly and the drilling rod driver assembly. The well control device has a packing element or double packing elements.
Features
- The BOP bearings adopt dynamically forced lubrication.
- The dynamic seal part uses a structure of packing box which can be replaced quickly.
- The BOP’s cooling system cools the upper dynamic seal in a sustainable manner.
Technical Parameters
| Model | FX18-7/10.5 | FX28-5/10 | FX35-10.5/21 |
| Max. Static Seal Pressure | 10.5 MPa (1,500 psi) | 10MPa (1,450 psi) | 21 MPa (3,000 psi) |
| Max. Dynamic Seal Pressure | 7 MPa (1,000 psi) | 5MPa (700 psi) | 10.5 MPa (1,500 psi) |
| Rated Working Pressure of Stripping | 7 MPa (1,000 psi) | 3.5MPa (500 psi) | 7 MPa (1,000 psi) |
| Max. Rotational Speed | 120 rpm | 120 rpm | 120 rpm |
| Base Pipe’s Bore Size | 179.4 mm (7 1/16") | 179.4 mm (7 1/16") | 179.4 mm (7 1/16") |
| Outer Diameter | 418 mm (16 9/20") | 418 mm (16 9/20") | 456 mm (17 19/20") |
| Max. Seal Size | 3" hexagonal drilling pipe 2 7/8" drilling pipe (with 18°/ 35° joint) | 3 1/2" hexagonal drilling pipe 3 1/2" drilling pipe (with 18°/ 35° joint) | 5 1/4" hexagonal drilling pipe 5" drilling pipe (with 18°/ 35° joint) |
| Delivered Medium | Drilling fluid, crude oil, natural gas | Drilling fluid, crude oil, natural gas | Drilling fluid, crude oil, natural gas |
| Temperature Rating for Metallic Materials | T20（-29～121℃） | T20（-29～121℃） | T0 (-18～121℃) |
| Bottom Connection | 7 1/16"-5,000psi 6B R46 | 11"-3,000psi6B R53 | 13 5/8"- 5,000 psi 6B BX160 |
| Side Outlet Connection | - | 4 1/16"-5,000psi 6B R39 | 7 1/16"- 5,000 psi 6B R46 2 1/16"- 5,000 psi 6B R24 |
| Rated Working Pressure of the Lubrication System | 1MPa (145 psi) | 1MPa (145 psi) | 0.8 MPa (110 psi) |
| Clamp Air Pressure | 0.6～0.8 MPa (87～116 psi) | 0.6～0.8 MPa (87～116 psi) | - |
| Power | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Overall Dimension (L×W×H) | 780mm×574mm×1090mm (30.7"×22.6"×42.9") | 780mm×574mm×928mm (30.7"×22.6"×36.5") | 849mm×771mm×1809mm (33.4"×30.4"×71.2") |
| Weight | 777kg (1713lb) | 803kg (1770lb) | 2293kg (5055lb) |
